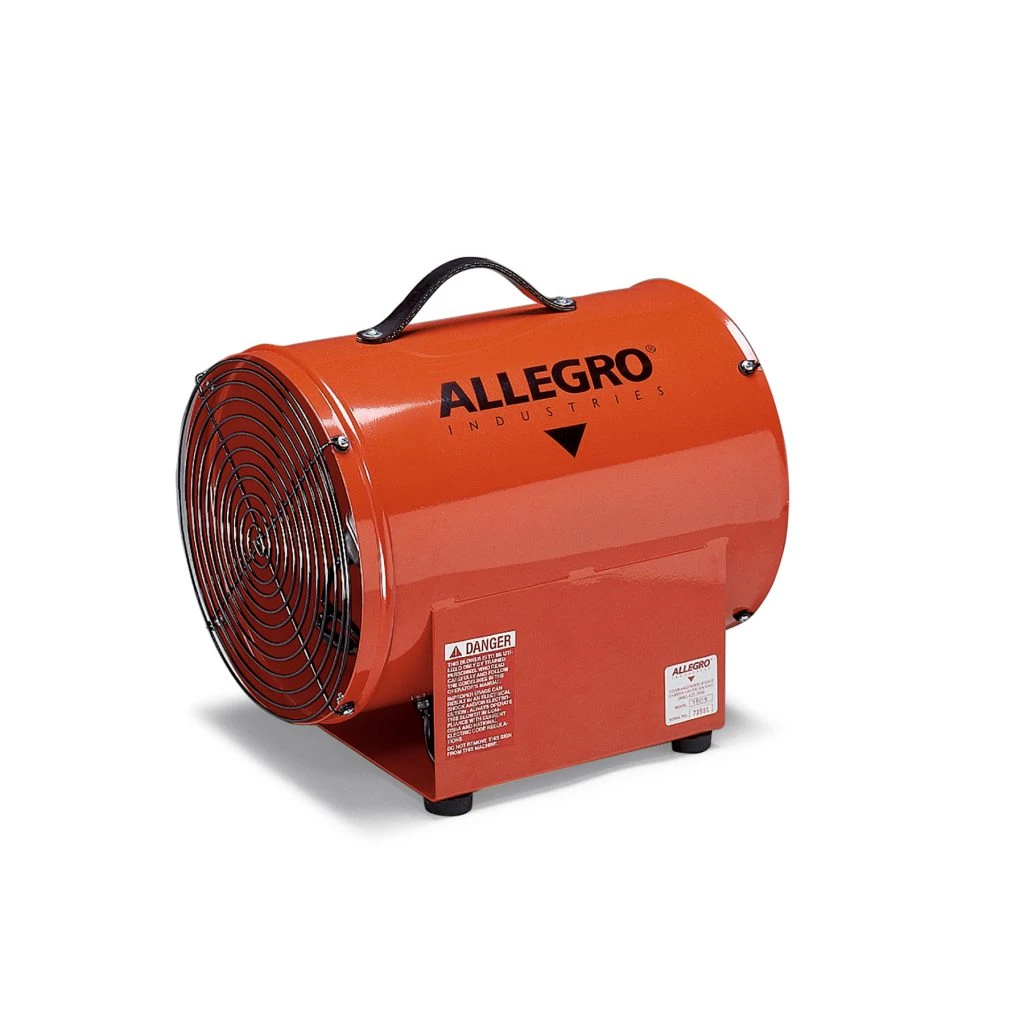

Allegro 12″ Axial DC Metal Blower | 9529

This portable and lightweight 12” (30.4 cm) DC blower is intended for applications requiring larger amounts of air output. It includes a 1/4 HP motor with an efficient three-blade impeller in a rugged metal housing. Our DC Blowers are designed to be used with standard car or truck batteries as the source of power. If it is necessary to leave the vehicle running to avoid draining the battery, it is important to ensure that the vehicle is parked downwind from the inlet of the blower to prevent any CO from entering the working area.

CONSTRUCTION:

• Complete unit epoxy powder coated in “safety orange”
• Ducting may be attached at either flange for intake or exhaust ventilation
• 16-gauge cold rolled steel housing
• 14-gauge steel base
• 3-ply rubber carrying handle
• Steel black powder coated grill
• Equipped with four rubber feet

MOTOR:

• HP: 1/4 HP
• Voltage/Hz: 12V DC
• RPM: 3800
• Current Draw: 22A
• Fuse: Inline 30A
• Cord: AGW 12/2 300V, neoprene medium duty
• Connector: Alligator Clips

FAN:

• Glass reinforced polypropylene (PPG) three blade fan, with aluminum hub
• Moving fan mounted 1 5/8” (4.25 cm) from grill for safety
• Grill Gap: 5/16” (0.78 cm)

DUCTING: (Optional)

• Retractable, non-collapsible design, temperature resistant up to 180° F (82.2° C)
• Single ply PVC coated, vinyl and polyester materials
• Yellow color with black weather-strip and integrated nylon straps
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs



BLOWER DIMENSIONS:

Length	Width	Height	Weight
15 ½” (39.7 cm)	12” (30.4 cm)	16” (40.6 cm)	24 lbs. (12.2 kg)



**FLOW RATES: (CFM calculated using 15’ (4.57 m) of 12” (30.4 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
1685 CFM (2862.83 m3/hr)	1220 (2072.79 m3/hr)	1020 (1732.99 m3/hr)
