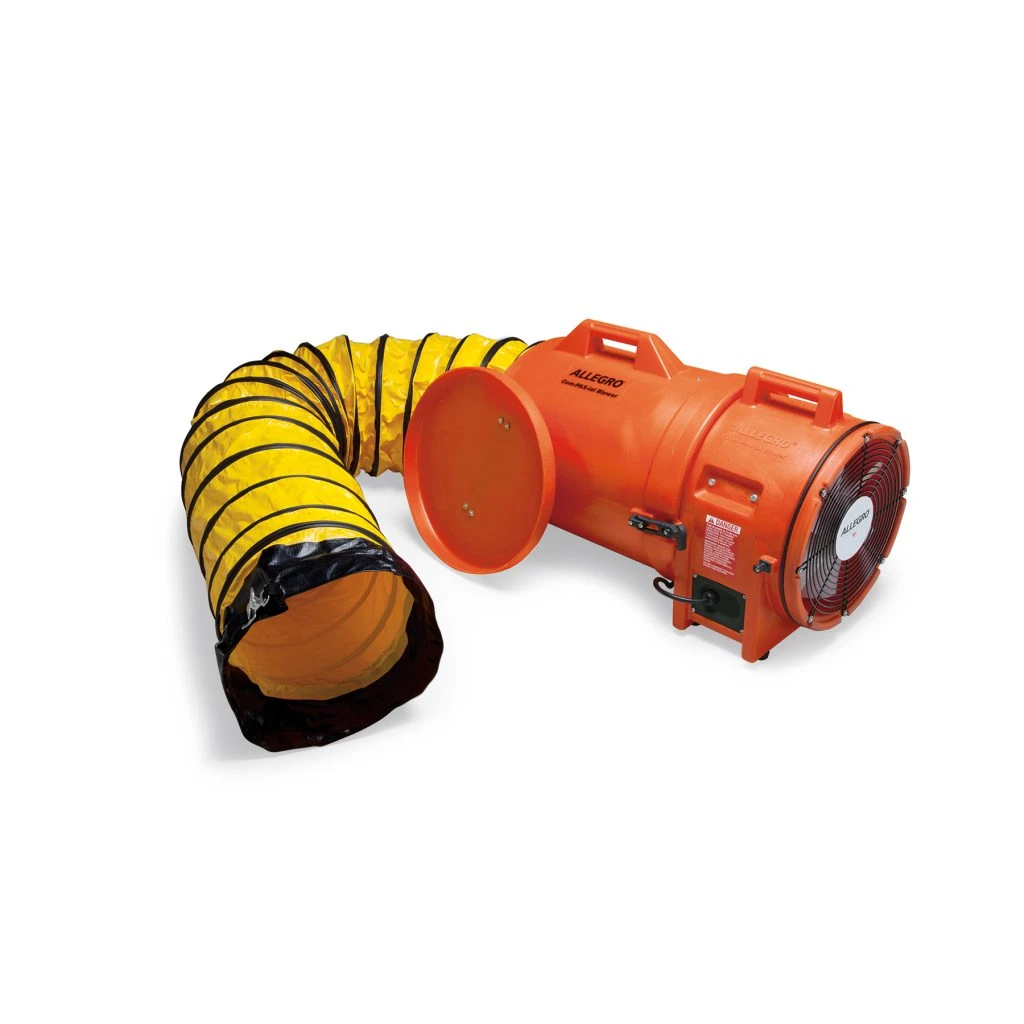

Allegro 12" Axial DC Plastic Blower with Canister and 15' Ducting | 9546-15

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Available as blower only or complete unit with 15’ (4.57 m) or 25’ (7.62 m) of ducting and storage canister. Canister attaches to intake or output of blower for suction or ventilation. Certified to CSA Standard C22.2 No.113.

CONSTRUCTION:

• Polyethylene housing and canister assembly
• Lightweight-, corrosion-, UV-, and chemical-resistant
• Super quiet, in “safety orange” housing
• Carry handle molded into blower and canister housing
• Steel powder coated grill

MOTOR:

• HP: 1 HP
• Certification: UL Listed, CSA Certified, CE Certified
• Voltage/Hz: 115V-230V AC, 50/60 Hz, Single Phase
• RPM: 2800/3400
• Amps: 11A-5.5A (50 Hz), 10A-5A (60 Hz)
• Switch: Built-in On/Off rocker
• Cord: 13’ (3.96 m) AWG
• Plug: NEMA 5-15P

FAN:

• Polypropylene six blade fan

DUCTING: (included on 9543-15 and 9543-25 models)

• Retractable, non-collapsible design, single ply
• PVC coated vinyl and polyester materials
• Yellow color with black weather strip and integrated nylon attachment strap
• Spring steel wire helix



BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9543	13” (33 cm)	16” (40.6 cm)	17” (43.1 cm)	28 lbs. (12.7 kg)
9543-15	27” (68.5 cm)	16” (40.6 cm)	17” (43.1 cm)	43 lbs. (19.5 kg)
9543-25	27” (68.5 cm)	16” (40.6 cm)	17” (43.1 cm)	49 lbs. (22.2 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 12” (30.4 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
1842 CFM (3129.57 m3/hr)	1004 CFM (1705.8 m3/hr)	933 CFM (1585.17 m3/hr)
