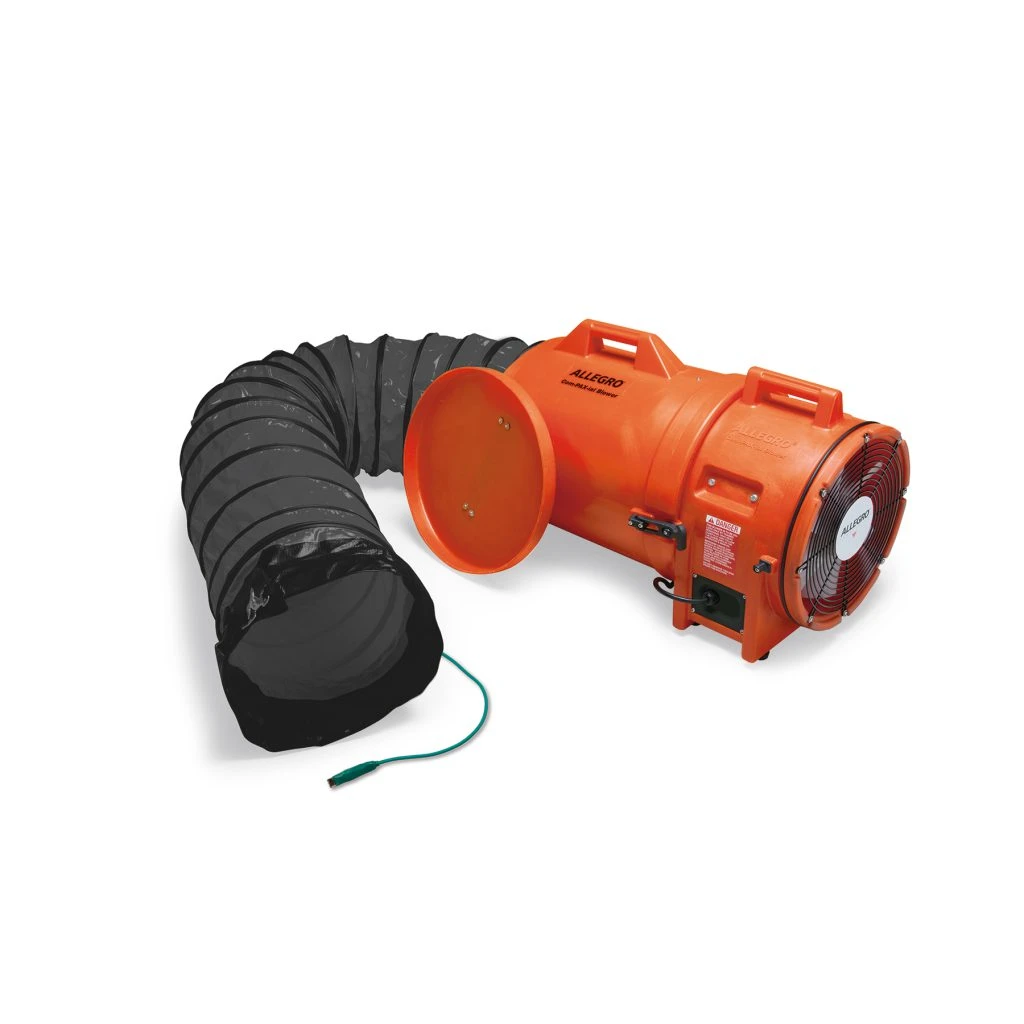

High output from a compact explosion-proof axial blower, designed for easy use and storage without sacrificing airflow. Available as blower only or complete unit with 15’ (4.57 m) or 25’ (7.62 m) of ducting and storage canister. Canister attaches to intake or output of blower for suction or ventilation. It is designed for hazardous locations.

CONSTRUCTION:

• Polyethylene housing and canister assembly
• Lightweight-, corrosion-, UV-, and chemical-resistant
• Super quiet, in “safety orange” housing
• Carry handle molded into blower and canister housing
• Steel powder coated grill
• NOTE: EX blowers require an explosion-proof socket (PN 9503-06)

MOTOR:

• HP: 1/3 HP
• Certifications: UL Listed, CSA Certified
• Voltage/Hz: 220V AC, 50 Hz, Single Phase
• RPM: 2750 (220V, 50 Hz)
• Amps: 1.2A
• Cord: 25’ (7.62 m), SJOOW 18/3 AWG

FAN:

• PAGAS (Anti-static glass reinforced Polyamide) three-blade fan
• Aluminum hub

STATICALLY CONDUCTIVE DUCTING: (included on 9548-15E and 9548-25E models)

• Black single-ply lightweight vinyl/polyester, coated with neoprene 250° F (121.1° C) temperature-resistant
• Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
• Retractable, non-collapsible design, Single ply
• Spring steel wire helix
• WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.

HAZARDOUS LOCATION RATINGS:

BLOWER DIMENSIONS:

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 12” (30.4 cm) ducting)

**Air flow determined at 60 Hz
