Allegro

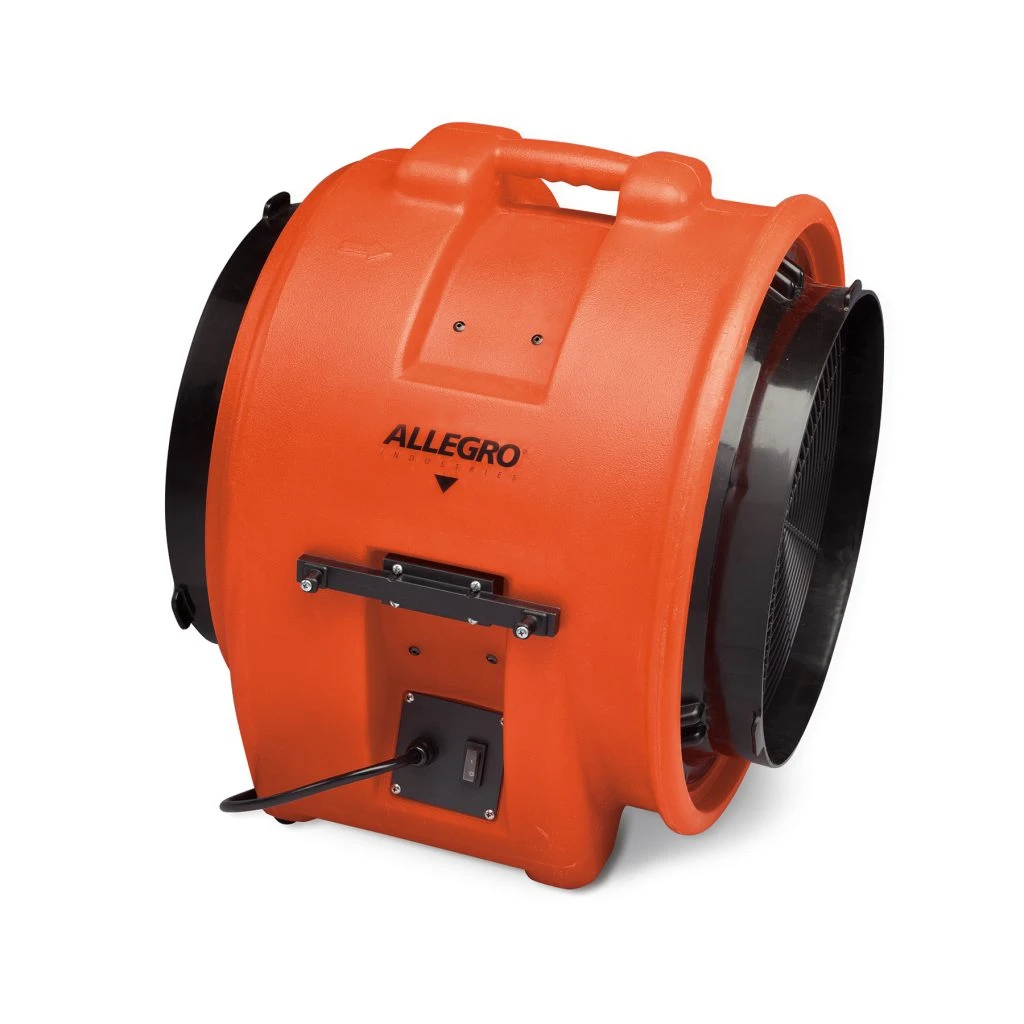

Allegro 16″ Axial AC Plastic Blower | 9553

Allegro 16″ Axial AC Plastic Blower | 9553

$707.60
  • SKU: 9553
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Lightweight, portable, and durable, this high output blower is ideally suited for large confined spaces such as paper mills, tank purging or utility sites. The quick-connect clipping system allows workers to attach the canister, tools free, to the input side for powerful extraction or output side for ventilation. Certified to CSA Standard C22.2 No.113. CE Certified.

CONSTRUCTION:

  • Polyethylene “safety orange” color housing
  • Lightweight, corrosion-, UV-, and chemical-resistant
  • Super quiet
  • Carry handle molded into blower and canister housing
  • Black plastic grill
  • Built-in on/off switch and enclosed electrical components

MOTOR:

  • HP: 1 HP
  • Certification: UL Listed, CSA Certified, CE Certified
  • Voltage/Hz: 115V/60 Hz, Single Phase
  • RPM: 3450
  • Amps: 9A
  • Switch: Built-in On/Off rocker
  • Cord: 20’ (6.1 m) (UL) SJT, 14 AWG
  • Plug: NEMA 5-15P

FAN:

  • Polypropylene three-blade fan

DUCTING: (included on 9553-15 and 9553-25 models)

  • Retractable, non-collapsible design, Single ply
  • PVC coated vinyl and polyester materials
  • Yellow color with black weather strip and integrated nylon attachment strap
  • Spring steel wire helix



BLOWER DIMENSIONS:

PN Length Width Height Weight
9553 20” (50.8 cm) 22.5” (57.1 cm) 22.5” (57.1 cm) 40 lbs. (18.1 kg)
9553-15 34” (86.4 cm) 22.5” (57.1 cm) 22.5” (57.1 cm) 66 lbs. (29.9 kg)
9553-25 34” (86.4 cm) 22.5” (57.1 cm) 22.5” (57.1 cm) 73 lbs. (33.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 12” (30.4 cm) ducting)

Free Air One 90° Bend Two 90° Bends
3200 CFM (5436.83 m3/hr) 2350 CFM (3992.67 m3/hr) 2250 CFM (3822.77 m3/hr)
