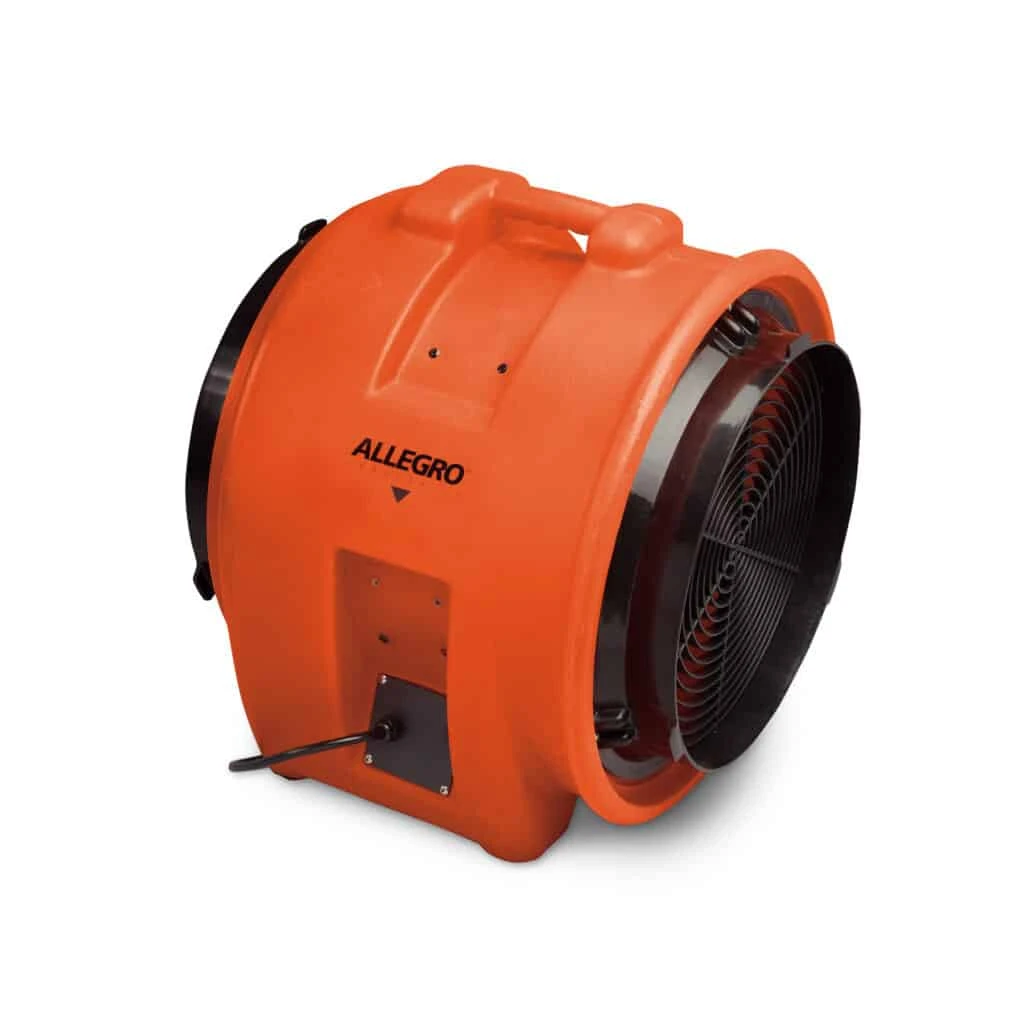

Allegro 16″ Axial Explosion-Proof (EX) Industrial Plastic Blower | 9539-16EX

Allegro 16″ Axial Explosion-Proof (EX) Industrial Plastic Blower | 9539-16EX

$1,571.87
  • SKU: 9539-16EX
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Designed for use in applications requiring a large amount of output in a hazardous location environment. This 16” (40.6 cm) explosion-proof blower is offered with a ¾ HP motor in a rugged and lightweight housing.

CONSTRUCTION:

  • Polyethylene housing, in “safety orange”
  • Lightweight, corrosion-, UV-, and chemical-resistant
  • Super quiet
  • Carry handle molded into blower
  • Black plastic grill
  • 25’ (7.62 m) power cord
  • NEMA 5-20 ECP type plug
  • NOTE: EX blowers require an explosion-proof socket (PN 9503-03)

WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.

MOTOR:

  • HP: ¾ HP
  • Certifications: UL Listed, CSA Certified
  • Voltage: 115/208-230V
  • RPM: 3450
  • Amps: 9.6/4.6-4.8A

FAN:

  • Anti-static glass reinforced polyamide (PAGAS), three blade fan with aluminum hub

DUCTING: (Optional – available in 15’ (4.57 m) and 25’ (7.62 m) lengths)

  • Retractable, non-collapsible design, Single ply
  • Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temperature resistant up to 250° F (121.1° C)



HAZARDOUS LOCATION RATINGS:

Class: I Class: II
Divisions: 1 & 2 Divisions: 1 & 2
Groups: C & D Groups: F & G



BLOWER DIMENSIONS:

Length Width Height Weight
20” (50.8 cm) 21” (53.3 cm) 22” (55.9 cm) 51 lbs. (23.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 16” (40.6 cm) ducting)

Free Air One 90° Bend Two 90° Bends
2849 CFM (4841 m3/hr) 2290 CFM (3891 m3/hr) 1951 CFM (3315 m3/hr)
