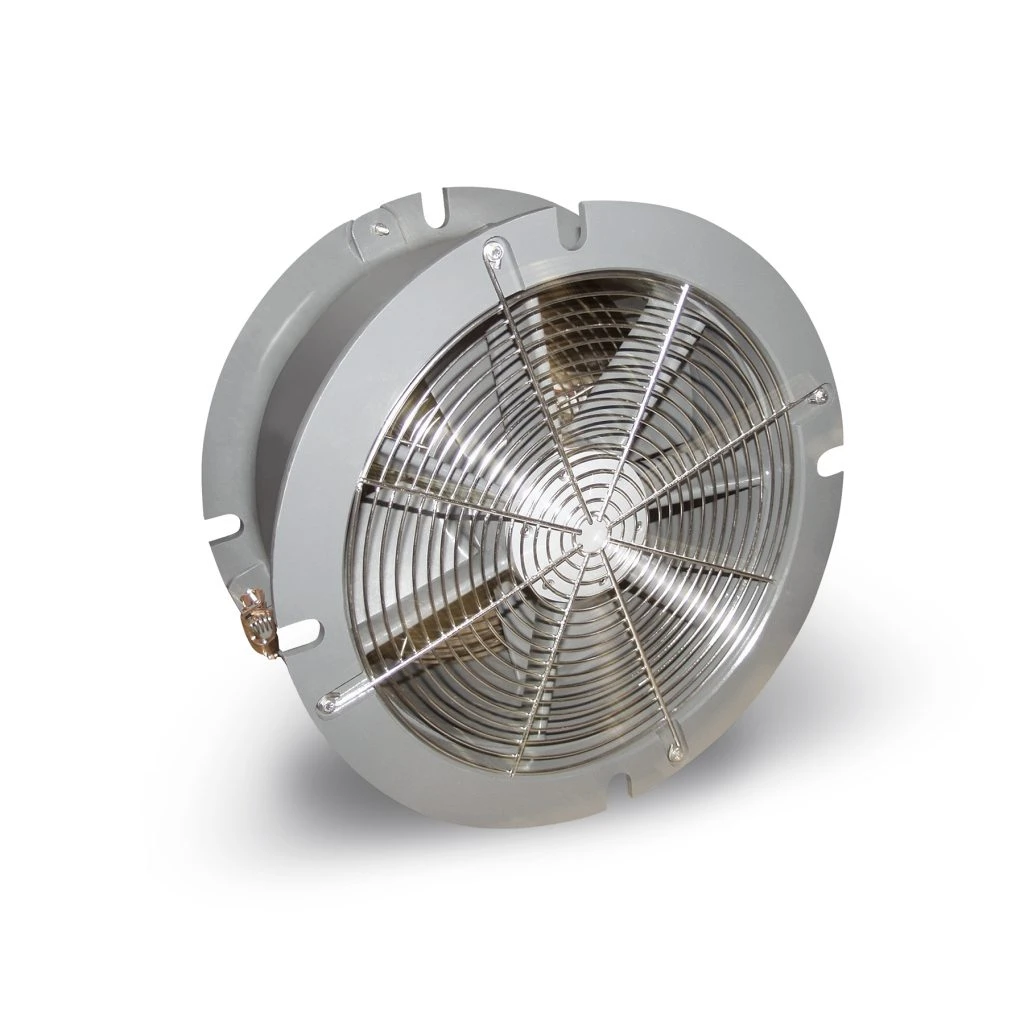

When operated, compressed air is pushed through a nozzle at the tip of each fan blade, which propels the fan at high speeds creating up to 10,500 CFM (17,840 m3/hr) for the 20” (50.8 cm) model, and 16,000 CFM (27,184 m3/hr) for the 24” (60.9 cm) model at 100 psig (6.9 Bar) inlet pressure quickly and efficiently. The unit’s flange is designed to fit standard API tank openings. These units can be used as blowers or exhausters, by simply reverse mounting. These blowers are easily transported from one place to another by using its recessed carry handles, or it may be rolled.
CONSTRUCTION:
- Heavy duty aluminum fan and fan housing
- Spark-resistant
- Heavy duty ball bearings (permanently lubricated and sealed for the life of the product)
- Stainless steel fan shaft eliminates internal rust
- 3/4” (1.9 cm) NPT side mount inlet connector for 20” (50.8 cm) model, 1” (2.54 cm) NPT for 24” (60.9 cm) model
- OSHA standard safety screens
| Size |
Inlet Pressure (PSIG) |
Air Consumption (SCFM) |
Decibels @ 5ft. |
CFM at Given Static Pressure (in Wg)
(Measured in inches of water) |
| 0" |
1" |
2" |
3" |
4" |
|
20"
(50.8 cm)
|
40 (2.8 Bar) |
60 (102 m3/hr) |
N/A |
6000
(10,194 m3/hr)
|
3600
(6,116 m3/hr)
|
1,600
(2,718 m3/hr)
|
200
(340 m3/hr)
|
-- |
| 60 (4.1 Bar) |
114 (194 m3/hr) |
106 |
7500
(12,743 m3/hr)
|
5900
(10,024 m3/hr)
|
3,900
(6,626 m3/hr)
|
2,300
(3,907 m3/hr)
|
1,200
(2,039 m3/hr)
|
| 80 (5.6 Bar) |
186 (316 m3/hr) |
108 |
9000
(15,291 m3/hr)
|
7700
(13,082 m3/hr)
|
6,000
(10,194 m3/hr)
|
4,400
(7,475 m3/hr)
|
3,200
(5,437 m3/hr)
|
| 100 (6.9 Bar) |
292 (496 m3/hr) |
110 |
10500
(17,840 m3/hr)
|
9200
(15,630 m3/hr)
|
7,800
(13,252 m3/hr)
|
6,300
(10,704 m3/hr)
|
4,800
(8,155 m3/hr)
|
|
24"
(60.9 cm)
|
40 (2.8 Bar) |
76 (129 m3/hr) |
N/A |
8200
(13,932 m3/hr)
|
2400
(4,077 m3/hr)
|
-- |
-- |
-- |
| 60 (4.1 Bar) |
147 (250 m3/hr) |
109 |
11,000
(18,689 m3/hr)
|
6500
(11,044 m3/hr)
|
-- |
-- |
-- |
| 80 (5.6 Bar) |
225 (382 m3/hr) |
111 |
12900
(21,917 m3/hr)
|
9900
(16,820 m3/hr)
|
6,200
(10,534 m3/hr)
|
3,400
(5,776 m3/hr)
|
1,200
(2,039 m3/hr)
|
| 100 (6.9 Bar) |
338 (574 m3/hr) |
112 |
16000
(27,184 m3/hr)
|
14000
(23,876 m3/hr)
|
11,300
(19,199 m3/hr)
|
8,300
(14,102 m3/hr)
|
6,300
(10,704 m3/hr)
|
| Dimensions |
| |
20” (50.8 cm) |
24” (60.9 cm) |
| A |
20.125” (51.1 cm) |
24.25” (61.6 cm) |
| B |
22.5” (57.1 cm) (BC) |
30.25” (76.8 cm) |
| C |
9.875” (25.1 cm) |
11.75” (29.8 cm) |
| D |
24.75” (62.8 cm) |
32.75” (83.2 cm) |
| E |
1” (2.8 cm) |
1.125” (2.8 cm) |
| F |
75 lbs. (34 kg) |
165 lbs. (74.8 kg) |
A – Internal Diameter B – Bolt Circle C – Height D – Outer Diameter E – Butterworth (Flange)
NOTE: Maximum operating air pressure is 100 psig (6.9 Bar). Temp of compressed air should not exceed 200° F (93.3° C). Units are NOT designed to run on steam!
