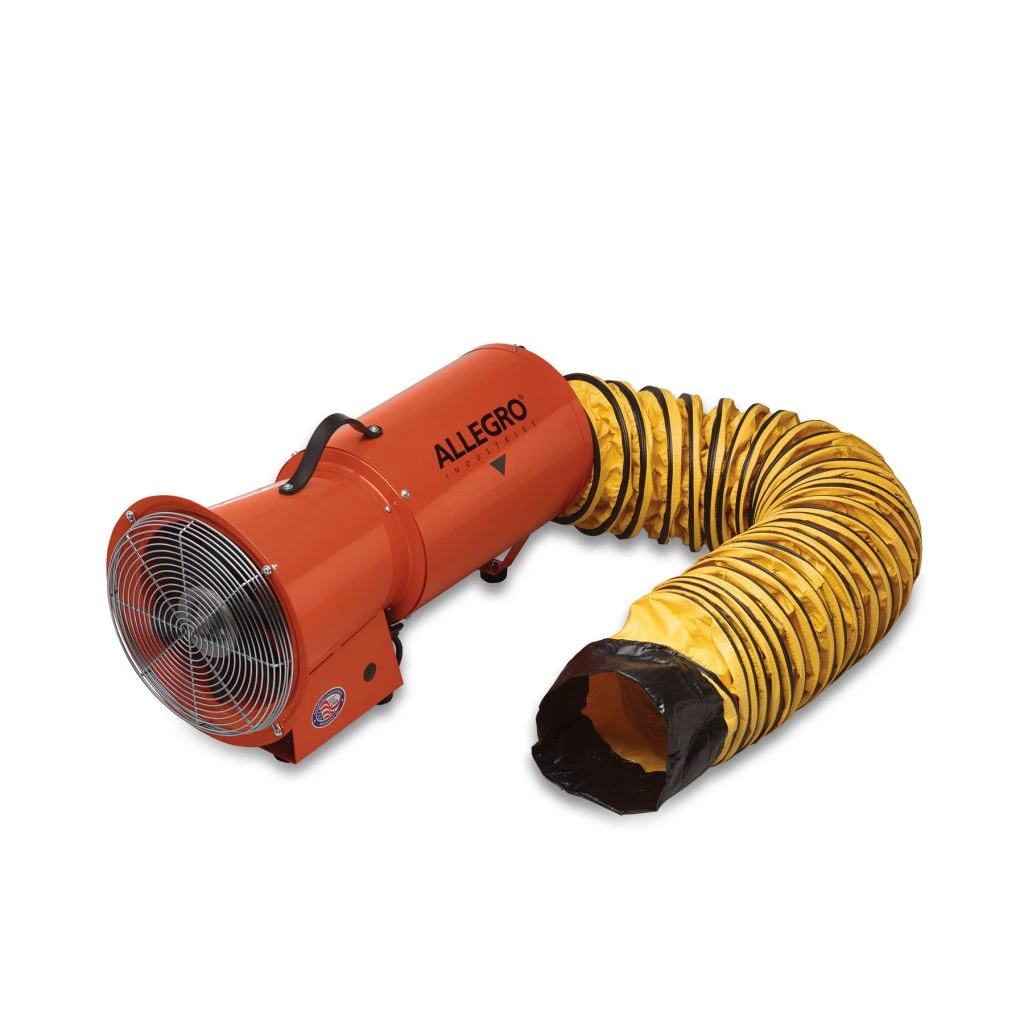

Allegro 8" Axial AC Blower with Canister and 15’ Ducting - 220V | 9514-E

Highest output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Complete system with built in canister and ducting.

CONSTRUCTION:

• Epoxy powder coated in “safety orange”
• Flange on intake side
• 18 gauge cold rolled steel housing w/ welded motor mount construction
• Bottom panel enclosed to protect electrical components
• Glass reinforced polypropylene (PPG) 6 blade fan with aluminum hub
• Steel/chrome plated grill
• Carry handle made of 3-ply rubber belting
• Equipped with five rubber feet

MOTOR:

• HP: 1/3 HP 220V AC, Single Phase
• Certifications: CSA Approved
• Max RPM: 2700 (loaded at 220V, 50 Hz)
• Current Draw: 1.6A (loaded at 220V, 50 Hz)
• Capacitor: 7.5 MFD 370V AC
• Cord: 6’ (1.82 m) AWG 16/3 SJTW
• Switch: Inline ON/OFF integrated on cord

DUCTING: (included with model 9514-25E)

• Single ply lightweight vinyl with polyester, PVC coated 180° F (82.22° C) temperature resistant
• Meets UL 94V-O flammability specifications
• Non-collapsible retractable design
• Class 1 hard drawn spring steel wire helix, ASTM 227 Spec.
• Yellow color with black wearstrip, and integrated nylon strap at both ends

DIMENSIONS:

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

*Blowers offered in 220V/50 Hz configuration

**Air flow determined at 60 Hz
