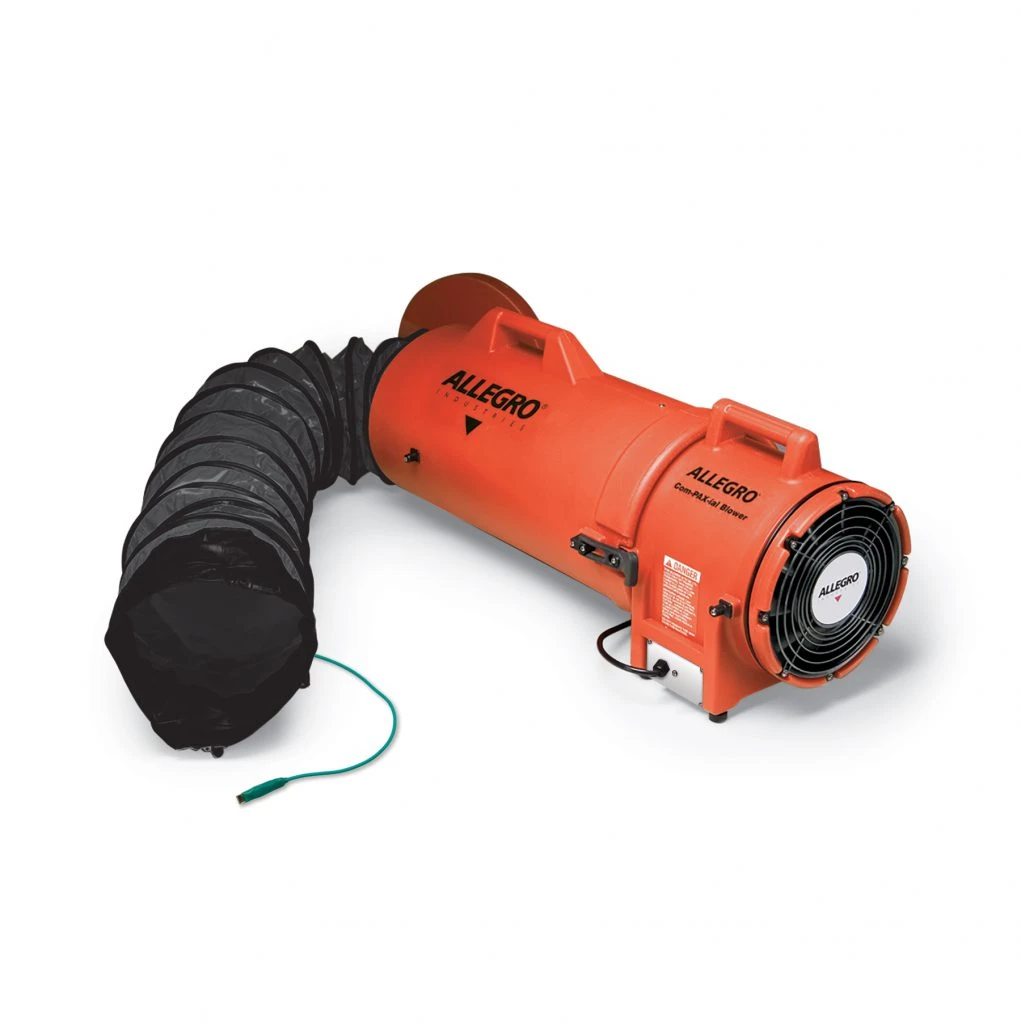

Allegro 8" Axial Explosion-Proof Plastic Blower with Canister and 50' Statically Conductive Ducting - 220V AC/50 Hz | 9538-50E
Allegro 8" Axial Explosion-Proof Plastic Blower with Canister and 50' Statically Conductive Ducting - 220V AC/50 Hz | 9538-50E

Allegro 8" Axial Explosion-Proof Plastic Blower with Canister and 50' Statically Conductive Ducting - 220V AC/50 Hz | 9538-50E

Allegro
Now: $2,137.20
SKU:
9538-50E

Product Description

High performance axial style fan for various industrial applications. Designed compact with anti-corrosive polyethylene material for lightweight, durable use, and practical storage.

CONSTRUCTION:

  • Polyethylene frame
  • Double lip for entry or exit of duct or container
  • Fan with 9 polypropylene blades with aluminum center
  • Powder-coated steel grille. Black
  • Handle incorporated into the frame and duct holder
  • Four (4) rubber feet
  • Orange

MOTOR:

  • HP: 1/3 HP 115V AC, Single Phase, UL Listed
  • Full Power: 2750 RPM at 220 Volts, 50 Hz
  • Current Required: 1.2 Amps at 220V, 50 Hz
  • Capacitor: 7.5 MFD 370 VAC
  • Cord: 20' AWG 16/3 SJOOW 90C 300V in neoprene for medium duty
  • Receptacle: (OPTIONAL) Explosion-proof, three-tooth UGR type, metal shrinkage. Part No.: 9503-06 (Order separately)



HAZARDOUS LOCATION RATINGS:

Class: I Class: II
Divisions: 1 & 2 Divisions: 1 & 2
Groups: C & D Groups: F & G



BLOWER DIMENSIONS: (9538 - blower only)

Blower PN Length Width Height Weight
9538-E 13 ¼” (33.6 cm) 12” (30.4) 13 ¾” (34.9 cm) 17 lbs. (7.7 kg)
9538-15E 26” (66.0 cm) 13.5” (34.3) 14 ½” (36.8 cm) 2 25 lbs. (11.3 kg)
9538-25E 26” (66.0 cm) 13.5” (34.3) 14 ½” (36.8 cm) 2 30 lbs. (13.6 kg)
9538-50E 32” (81.3) 13.5” (34.3) 14 ½” (36.8 cm) 2 40 lbs. (18.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air One 90° Bend Two 90° Bends
900 CFM (1529.1 m3/hr) 650 CFM (1104.35 m3/hr) 625 CFM (1061.8 m3/hr)
