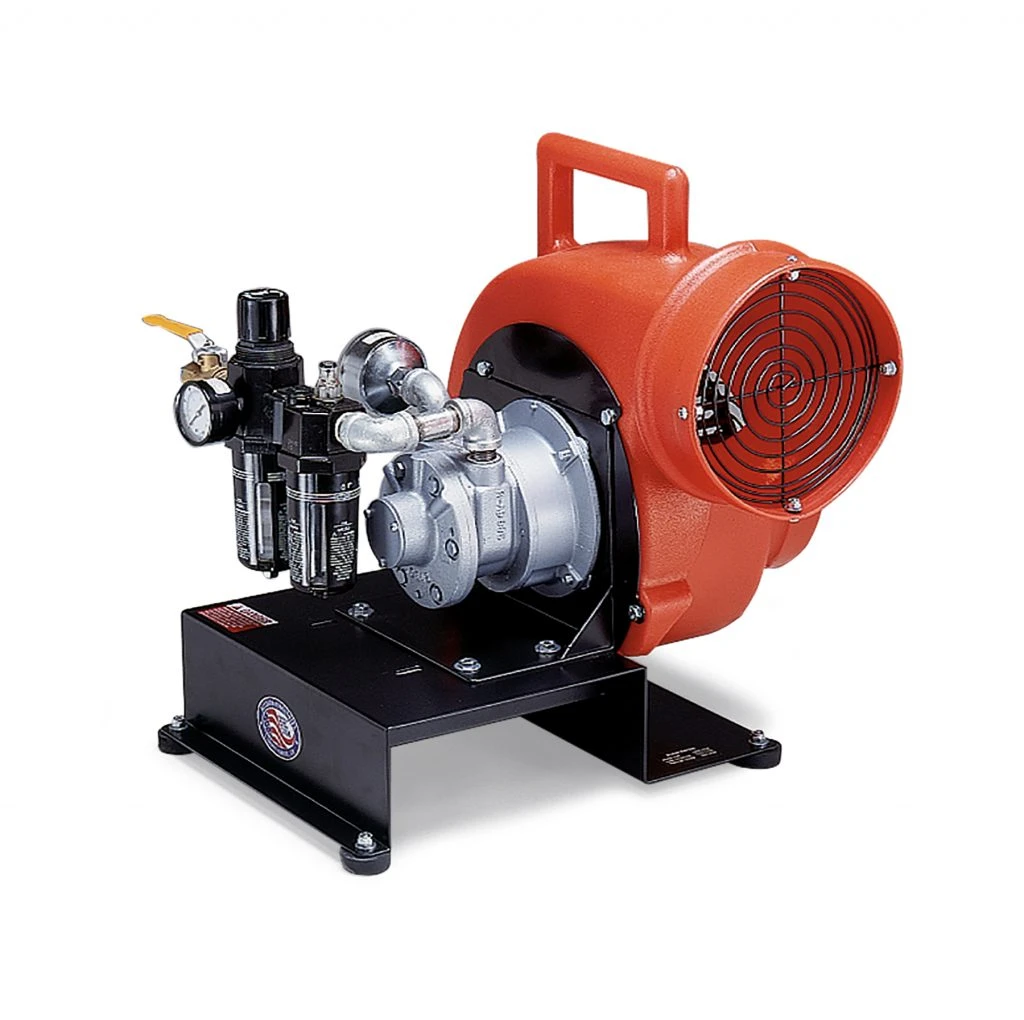

Allegro Centrifugal Air-Driven Blower (Hazardous Location) | 9508

Allegro Centrifugal Air-Driven Blower (Hazardous Location) | 9508

$1,837.47
  • SKU: 9508
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Ideal for areas where a compressor is readily available. The air motor is a non-electrical device reducing the possibility of igniting flammable gases. It includes a filter and lubricator as well as dual 8” (20.3 cm) ports, allowing positive ventilation or fume extraction. It has a large metal base and with handles integrated for support and portability.

CONSTRUCTION:

  • 8” (20.3 cm) flange on intake and exhaust ports
  • Tough “safety orange” polyethylene construction
  • One-piece housing with integrated handle
  • Powder coated 16-gauge steel base and handles
  • Aluminum blower wheel with aluminum hub
  • Steel zinc plated grill
  • Equipped with four rubber feet

AIR MOTOR:

  • Galvanized plumbing
  • Brass ball valve
  • Self-sealing vanes take-up their own wear, for constant output
  • Four vane design for more precise inching control and for stalled start-up operation

Filtration: Zinc manifold, ABS cover, nylon guard, polycarbonate bowl, with a 40-micron sintered polyethylene coalescing filter element and 0-1 60 psi (0-11.03 bar) pressure gauge

Lubricator: Zinc manifold, ABS cover, polycarbonate bowl with fill port for easy servicing

FAN:

  • Aluminum wheel with aluminum hub

DUCTING: (Optional)

  • Retractable, Non-collapsible design
  • Single ply, coated, vinyl/polyester materials, temperature resistant up to 180° F (82.22° C)
  • Class 1 hard drawn spring steel wire helix that meets ASTM 227 Specs



DIMENSIONS:

Length Width Height Weight
24” (60.9 cm) 22” (55.8 cm) 21” (53.3 cm) 53 lbs. (24 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air (High Speed) One 90° Bend (High Speed) Two 90° Bends (High Speed)
1700 CFM (2888.31 m3/hr) 1350 CFM (2293.6 m3/hr) 900 CFM (1529.1 m3/hr)
