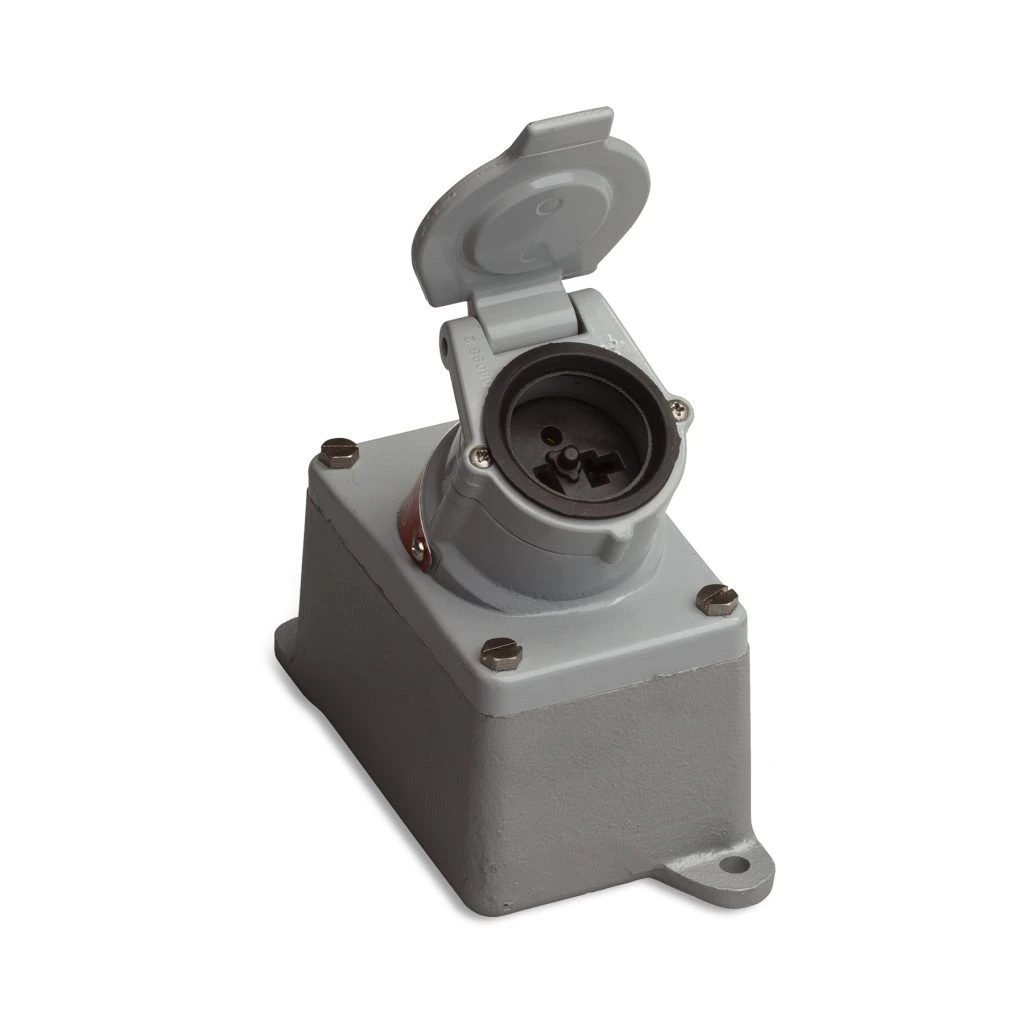

Allegro Explosion-Proof Socket - 110V | 9503-03

Allegro Explosion-Proof Socket - 110V | 9503-03

$658.13
  • SKU: 9503-03
In Stock & Ready To Ship!
Current Stock:Only left:
Description

This explosion-proof socket is used in hazardous locations. Features an iron mounting box with triple coat finish and a springloaded door keeping dust out of receptacle when plug is not in use. When plug is in use, a neoprene gasket inside receptacle seals around plug keeping out dirt, water, dust and other foreign matter.

TECHNICAL SPECS:

  • Certifications: UL listed, CSA certified
  • Plug: NEMA 20A, Explosion-Proof 1 HP (PN 9503-03) 2 HP (PN 9503-06)
  • Connector: 125V AC, 20A w/ spring cover (PN 9503-03) 220V AC, 20A w/ spring cover (PN 9503-06)
  • Poles/Wires: 2P3W Grounding
  • Door: Spring Door
  • Box: 1-Gang
  • Hubs: (1) 1/2”
  • Dimensions: 3 3/16” L x 6 3/16” W x 6 1/4” H
  • Material: Aluminum, Malleable Iron
  • Color: Gray

HAZARDOUS LOCATION RATING:

Class: I Class: II
Divisions: 1 & 2  Divisions: 1 & 2
Groups B, C and D Groups: F* & G
