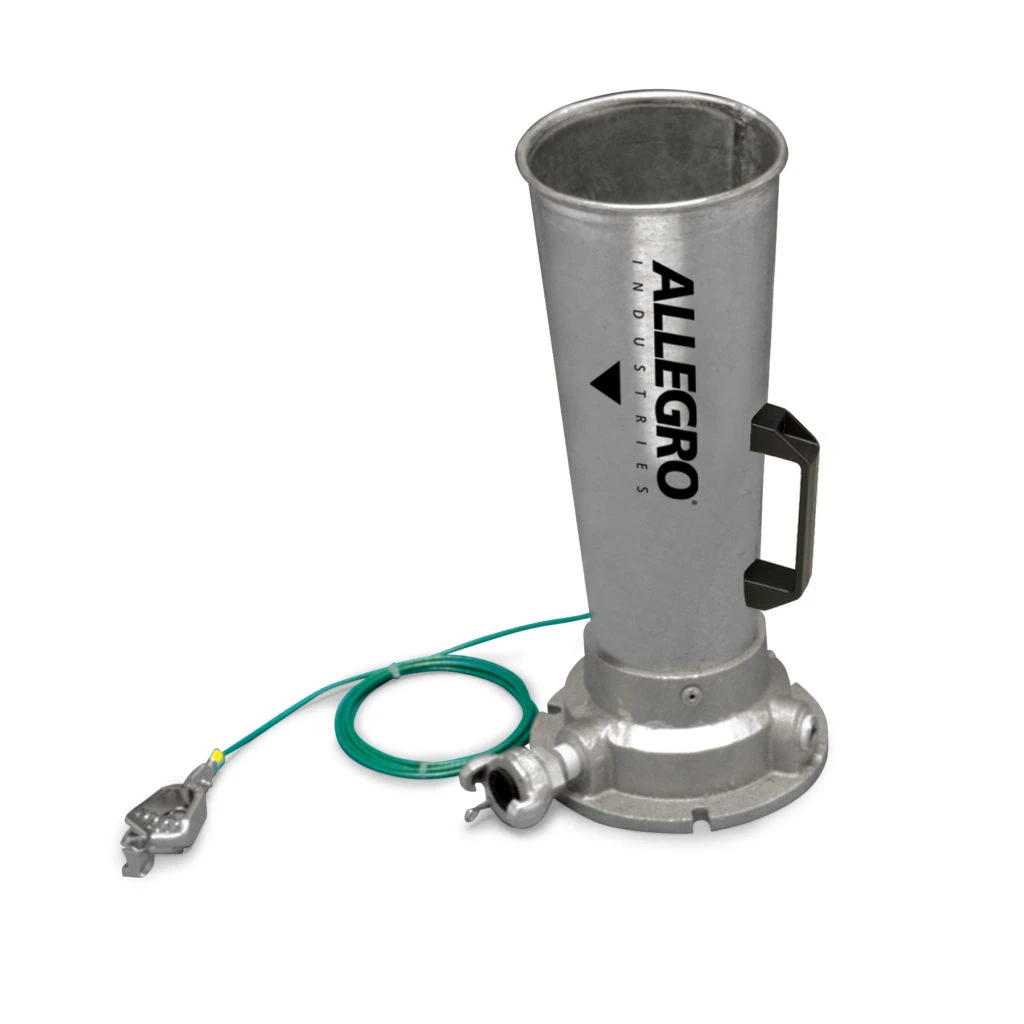

The Venturi Blowers are a perfect solution to moving air in refineries, utility and power plants, shipyards, paper and pulp plants, the marine and steel industry and manhole operations. Anywhere where fumes may be poisonous, explosive, or hazardous from process towers, tanks, large pipes or confined space need to be removed. You can cool workers in elevated temperature conditions, or heavy equipment. Our line of high-performance, lightweight Venturi Blowers helps create a safe, healthy working environment leading to greater efficiency and productivity. Welding fumes, hot air, gases, and smoke can all be removed quickly and easily.

CONSTRUCTION:

• Lightweight Galvanized steel
• 6’ (1.8 m) static ground connection attached to the inlet housing (for use in hazardous locations)
• Cast aluminum base
• Plastic Handle
• 1 to 1 ½” hose with “crows’ foot” connection recommended
• Does not require protective grills

DUCT CONSTRUCTION: (Optional)

• Single ply PVC coated vinyl and polyester materials
• Temperature resistant up to 180° F
• Retractable, non-collapsible design
• Class 1 hard drawn spring steel wire helix
• Meets ASTM 227
• Yellow color with black wearstrip

* 3 Mounting Slots

** 4 Mounting Slots
