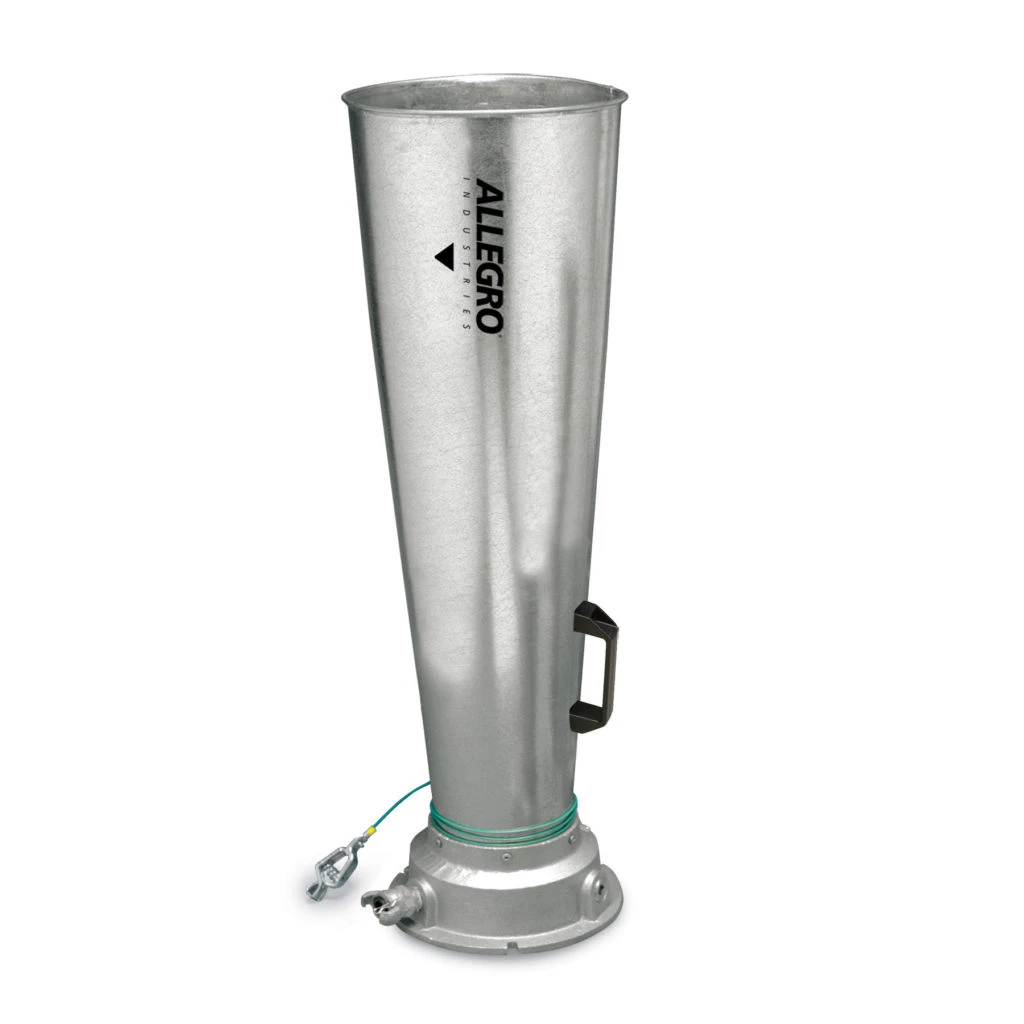

The Venturi Blowers are a perfect solution to moving air in refineries, utility and power plants, shipyards, paper and pulp plants, the marine and steel industry and manhole operations. Anywhere where fumes may be poisonous, explosive, or hazardous from process towers, tanks, large pipes or confined space need to be removed. You can cool workers in elevated temperature conditions, or heavy equipment. Our line of high-performance, lightweight Venturi Blowers helps create a safe, healthy working environment leading to greater efficiency and productivity. Welding fumes, hot air, gases, and smoke can all be removed quickly and easily.
CONSTRUCTION:
DUCT CONSTRUCTION: (Optional)
| Blower Dimensions | Air Flow | |||||||||||||||
| Part No | Overall Length (A | Base Diameter (B) | Diameter Top of Horn (C) | Thread (NPT) (D | Bolt Circle Diameter (E) | Basic Slot Diameter (F) | Net Weight (lb.) | AIR CONSUMED (SCFM) | TOTAL AIR FLOW (CFM | STATIC PRESSURE (IWC) | ||||||
| 60 PSIG | 80 PSIG | 100 PSIG | 60 PSIG | 80 PSIG | 100 PSIG | 60 PSIG | 80 PSIG | 100 PSIG | ||||||||
| 9518-03S | 16.75" | 7.31" | 6.00" | 1/2" | 6.56" | 0.4” * | 5.5 | 30 | 40 | 50 | 865 | 1080 | 1205 | 5.8 | 7.5 | 8.8 |
| 9518-03 | 30.50" | 7.31" | 7.00" | 1/2" | 6.56" | 0.4” * | 8.5 | 30 | 40 | 50 | 1135 | 1310 | 1465 | 5.8 | 7.5 | 8.8 |
| 9518-06 | 44.25" | 11.25" | 12.50" | 1" | 10.50" | 0.4” * | 22.3 | 60 | 80 | 100 | 2560 | 3020 | 3700 | 4.2 | 5.6 | 6.5 |
| 9518-08 | 46.06" | 14.37" | 14.25" | 1" | 13.62" | 0.5” * | 36.0 | 110 | 140 | 180 | 4215 | 4810 | 5435 | 4.0 | 5.2 | 6.2 |
| 9518-10 | 48.00” | 17.50” | 15.75” | 1" | 15.50” | 0.6” ** | 42.0 | 190 | 250 | 380 | 6180 | 7305 | 8220 | 5.5 | 6.7 | 7.7 |
| Free Air Induction Rates | Decibels (@ 5 ft.) | |||||
| Part No | 60 PSIG | 80 PSIG | 100 PSIG | 60 PSIG | 80 PSIG | 100 PSIG |
| 9518-03S | 28.83 | 27.00 | 24.10 | 66 | 68 | 71 |
| 9518-03 | 37.83 | 32.75 | 29.30 | 69 | 72 | 73 |
| 9518-06 | 42.67 | 37.75 | 37.00 | 73 | 75 | 78 |
| 9518-08 | 38.32 | 34.36 | 30.19 | 77 | 79 | 81 |
| 9518-10 | 32.53 | 29.22 | 30.19 | 81 | 83 | 85 |
* 3 Mounting Slots
** 4 Mounting Slots
