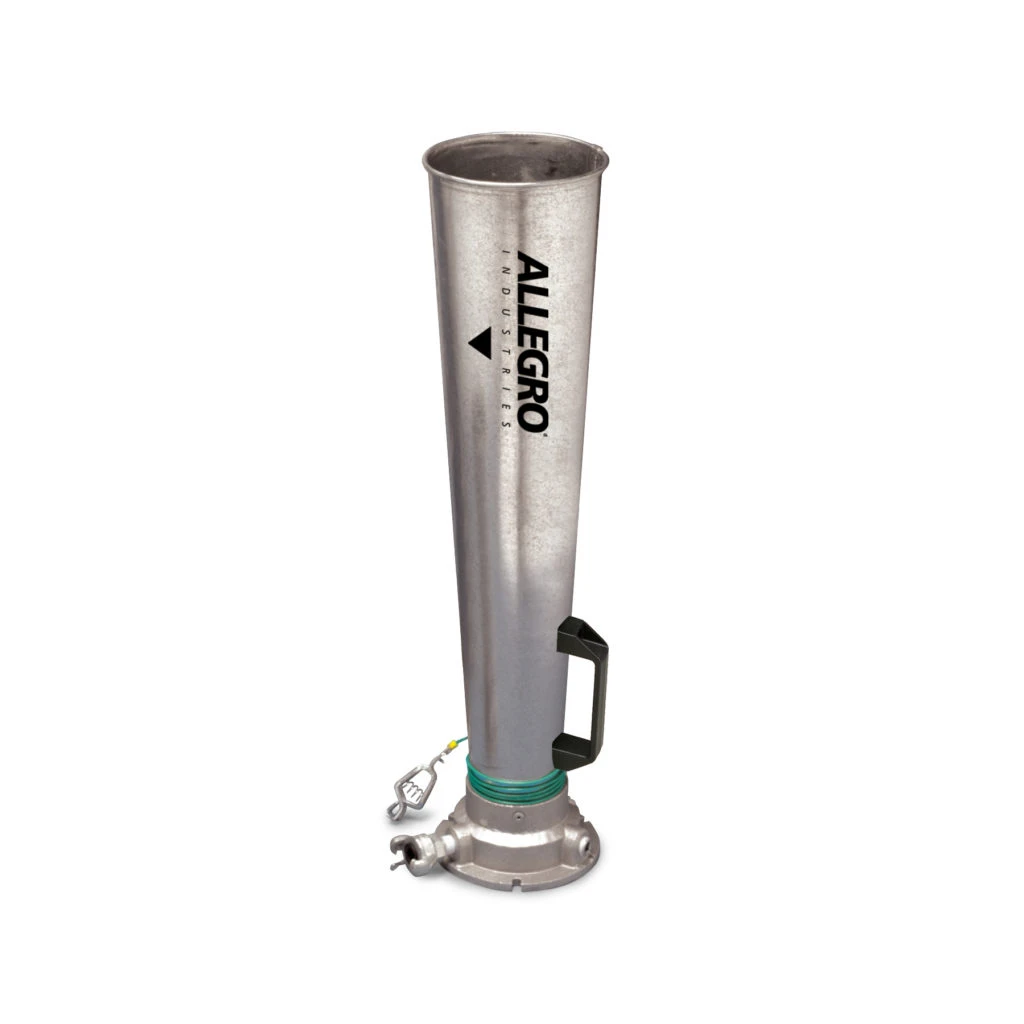

Allegro Small Metal Venturi Blower | 9518-03

Allegro Small Metal Venturi Blower | 9518-03

$305.07
  • SKU: 9518-03
In Stock & Ready To Ship!
Current Stock:Only left:
Description

The Venturi Blowers are a perfect solution to moving air in refineries, utility and power plants, shipyards, paper and pulp plants, the marine and steel industry and manhole operations. Anywhere where fumes may be poisonous, explosive, or hazardous from process towers, tanks, large pipes or confined space need to be removed. You can cool workers in elevated temperature conditions, or heavy equipment. Our line of high-performance, lightweight Venturi Blowers helps create a safe, healthy working environment leading to greater efficiency and productivity. Welding fumes, hot air, gases, and smoke can all be removed quickly and easily.

CONSTRUCTION:

  • Lightweight Galvanized steel
  • 6’ (1.8 m) static ground connection attached to the inlet housing (for use in hazardous locations)
  • Cast aluminum base
  • Plastic Handle
  • 1 to 1 ½” hose with “crows’ foot” connection recommended
  • Does not require protective grills

DUCT CONSTRUCTION: (Optional)

  • Single ply PVC coated vinyl and polyester materials
  • Temperature resistant up to 180° F
  • Retractable, non-collapsible design
  • Class 1 hard drawn spring steel wire helix
  • Meets ASTM 227
  • Yellow color with black wearstrip



Blower Dimensions  Air Flow
Part No  Overall Length (A Base Diameter (B)  Diameter Top of Horn (C)  Thread (NPT) (D Bolt Circle Diameter (E) Basic Slot Diameter (F)  Net Weight (lb.)  AIR CONSUMED (SCFM) TOTAL AIR FLOW (CFM STATIC PRESSURE (IWC)
60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG
9518-03S 16.75" 7.31"  6.00"  1/2"  6.56"  0.4” *  5.5 30 40 50 865 1080 1205 5.8 7.5 8.8
9518-03  30.50"  7.31"  7.00"  1/2"  6.56"  0.4” *  8.5 30 40 50 1135 1310 1465 5.8 7.5 8.8
9518-06  44.25"  11.25"  12.50"  1"  10.50"  0.4” *  22.3 60 80 100 2560 3020 3700 4.2 5.6 6.5
9518-08  46.06"  14.37"  14.25"  1"  13.62"  0.5” *  36.0 110 140 180 4215 4810 5435 4.0 5.2 6.2
9518-10  48.00”  17.50”  15.75”  1"  15.50”  0.6” ** 42.0 190 250 380 6180 7305 8220 5.5 6.7 7.7



Free Air Induction Rates Decibels (@ 5 ft.)
Part No  60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG
9518-03S 28.83 27.00 24.10 66 68 71
9518-03  37.83 32.75 29.30 69 72 73
9518-06  42.67 37.75 37.00 73 75 78
9518-08  38.32 34.36 30.19 77 79 81
9518-10  32.53 29.22 30.19 81 83 85



* 3 Mounting Slots

** 4 Mounting Slots
