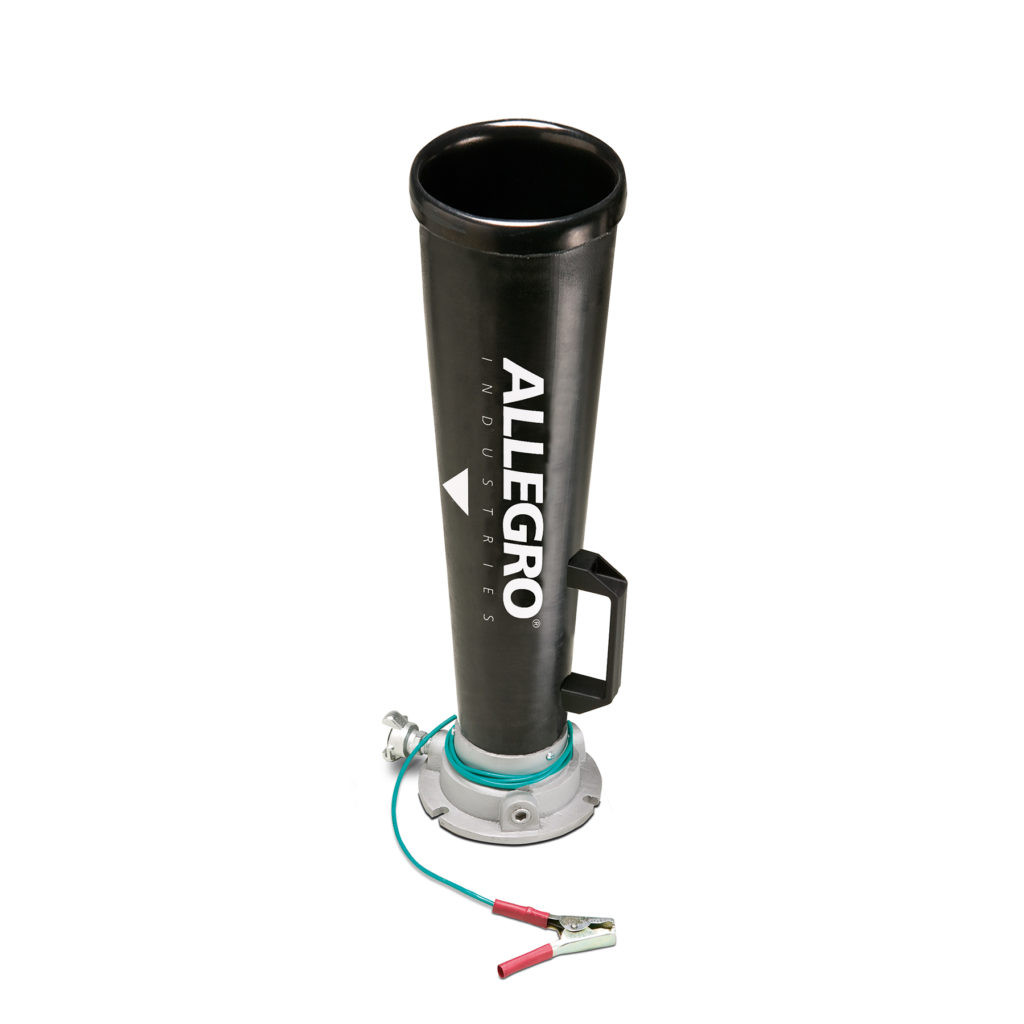

Allegro Small Plastic Venturi Blower | 9518-13

Allegro Small Plastic Venturi Blower | 9518-13

$277.07
  • SKU: 9518-13
In Stock & Ready To Ship!
Current Stock:Only left:
Description

The Plastic Venturi Blower is a perfect solution to moving air in refineries, utility and power plants, shipyards, paper and pulp plants, the marine and steel industry and manholes. Anywhere where fumes may be poisonous, explosive or hazardous from process towers, tanks, large pipes or confined space need to be removed. Can be used to cool workers in elevated temperature conditions or heavy equipment. Our Plastic Venturi Blowers help to create a safe, healthy working environment leading to greater efficiency and productivity. Welding fumes, hot air, gases, and smoke can all be removed quickly and easily.

CONSTRUCTION:

  • Lightweight, rugged, dent-proof, corrosion-resistant, anti-static, conductive cone made of Linear Low-Density Polyethylene (LLDPE) recyclable plastic
  • Casted aluminum inlet housing
  • Multiple inlet ports
  • 6’ (1.8 m) static ground connection attached to the inlet housing (for use in hazardous locations)
  • 1 to 1 ½” hose with “crows’ foot” connection recommended
  • Maximum operating temperature of 220° F

DUCTING: (Optional)

  • Retractable, non-collapsible design
  • Single ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180° F
  • Yellow color with black wearstrip and integrated nylon straps
  • Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

STATICALLY CONDUCTIVE DUCTING: (Optional)

  • Black, single ply lightweight vinyl/polyester, neoprene coated, heat resistant up to 250° F
  • Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 spec)



Blower Dimensions  Air Flow
Part No  Overall Length (A Base Diameter (B)  Diameter Top of Horn (C)  Thread (NPT) (D Bolt Circle Diameter (E) Basic Slot Diameter (F)  Net Weight (lb.)  AIR CONSUMED (SCFM) TOTAL AIR FLOW (CFM) STATIC PRESSURE (IWC)
60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG
9518-13S 16.75" 7.31"  6.00"  1/2"  6.56"  0.4” *  5.5 30 40 50 865 1080 1205 5.8 7.5 8.8
9518-13  30.50"  7.31"  7.00"  1/2"  6.56"  0.4” *  8.5 30 40 50 1135 1310 1465 5.8 7.5 8.8
9518-16  44.25"  11.25"  12.50"  1"  10.50"  0.4” *  22.3 60 80 100 2560 3020 3700 4.2 5.6 6.5
9518-18  46.06"  14.37"  14.25"  1"  13.62"  0.5” *  36.0 110 140 180 4215 4810 5435 4.0 5.2 6.2



Free Air Induction Rates Decibels (@ 5 ft.)
Part No  60 PSIG 80 PSIG 100 PSIG 60 PSIG 80 PSIG 100 PSIG
9518-13S 28.83 27.00 24.10 66 68 71
9518-13  37.83 32.75 29.30 69 72 73
9518-16  42.67 37.75 37.00 73 75 78
9518-18  38.32 34.36 30.19 77 79 81



* 3 Mounting Slots

** 4 Mounting Slots
