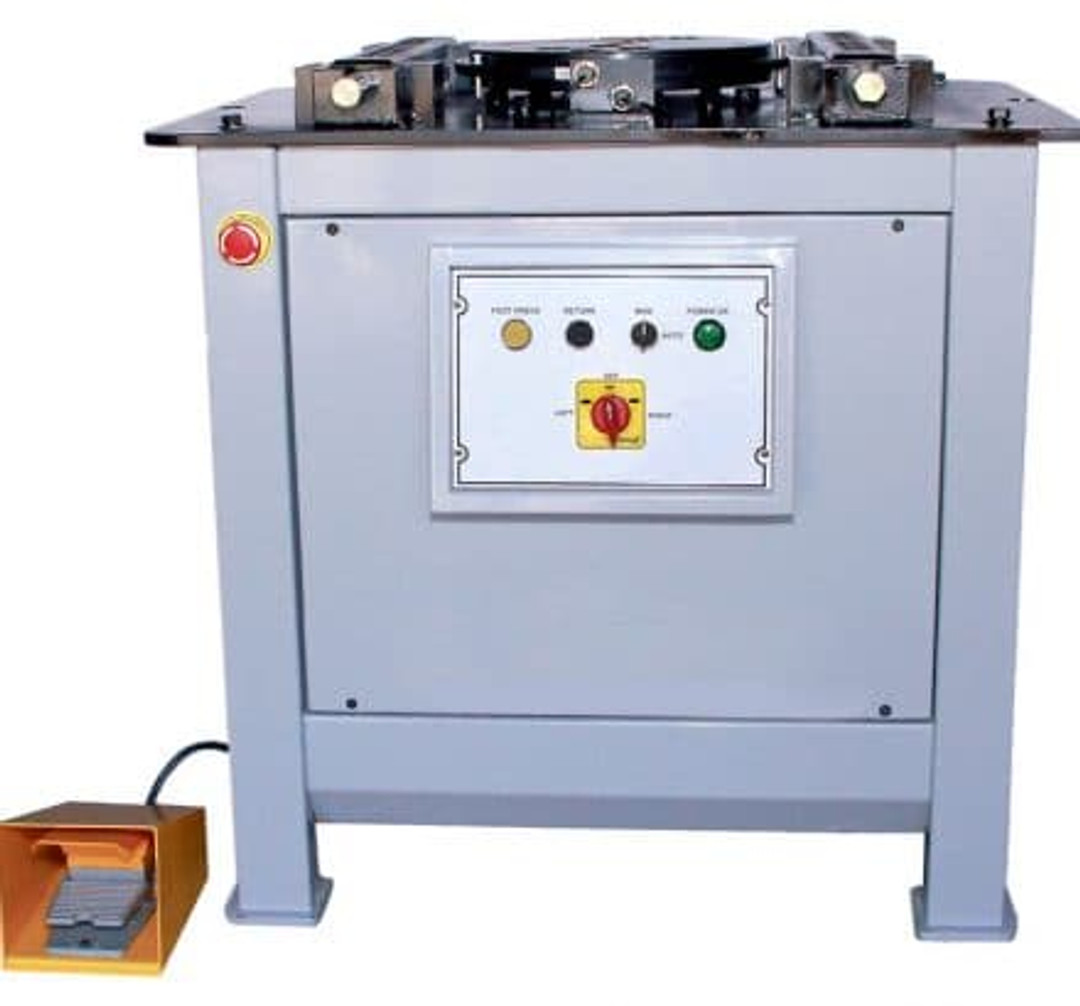

Our Sigma Series Professional DBM-25S Production Rebar Bender is used to accurately shape reinforcement bars. It is equipped with high-quality gears and an motor that is easy to program and use. This in-shop production tool can be programmed to bend in both directions. The steel frame and housing have a powder coated exterior finish for long-lasting durability.
Features
- It can bend #8 (25mm) grade 60 rebar; or 2 - #6 (20mm); or 3 - #5 (16mm) bars
- The steel frame and housing have a powder coated exterior finish for long-lasting durability.
- The DBM-25S mechanical gears are manufactured with special heat treated alloy steel to stand up to the demands of heavy-duty production rebar bending.
- Power requirements to operate the DBM-25S are 240/415V 3-Phase AC.
Additional Information
- Bending Capacity: Grade 60 Rebar: #8 (25mm)
- Additional Bending: This machine will bend #8 (25mm) grade 60 rebar; or 2 - #6 (20mm); or 3 - #5 (16mm) bars
- Width X Length X Height: 26.38" (670mm) x 34.65" (880mm) x 33.46" (850mm)
- Motor: 5 hp (3.7 kW), 60 Hz, 240/415V 3-phase AC
- Weight: 772 lbs ( 350 Kg)
- Gear Motor Type: Planerary Gear Motor
