C&S Supply 1.5" Straight Bore Nozzle with 5/8" Outlet | STBR-5/8

C&S Supply 1.5" Straight Bore Nozzle with 5/8" Outlet | STBR-5/8

$86.10
  • SKU: STBR-5/8
  • Availability: Ships in 24 to 48 hrs
  • disabledmerchant: true
  • is_free_shipping: true
Availability: Ships in 24 to 48 hrs
In Stock & Ready To Ship!
Current Stock:Only left:
Description

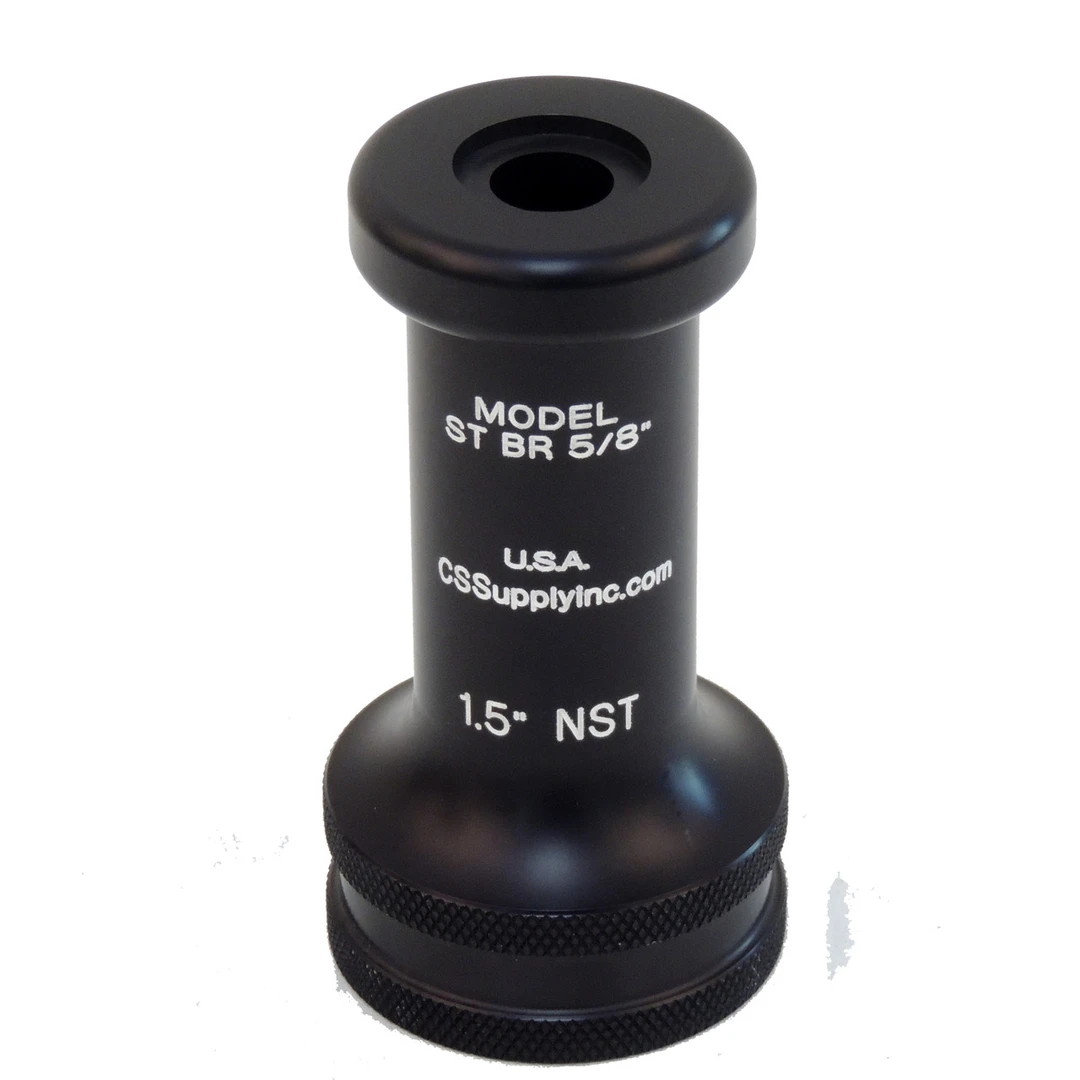

STBR-5/8 | The C&S Supply 5/8" Outlet, 1-1/2" Rigid Base Straight Bore nozzle.

Features

  • Consists of Viper shut-off valve made of light-weight and durable hard coated E-lite alloy
  • Nozzle tips feature a rugged hard anodized aluminum construction
  • Gradual internal down slope to specific orifice size for optimum stream quality
  • HUGE savings when purchased as one unit
  • Available 1.5” in NST and NPSH threads

Additional Information

  • Weight: 0.80 LBS
  • Width: 4.00 (in)
  • Height: 4.00 (in)
  • Depth: 5.00 (in)
SMOOTH BORE THEORETICAL FLOW DATA/ GPM
PSI 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 15/16" 1" 1 1/16" 1 1/8" 1 1/4"
40 6.5 11 27 48 73 107 143 166 189 212 239 295
50 7.5 13 31 54 82 119 160 186 211 237 267 329
60 8 14 32 57 89 129 176 202 230 259 291 359
80 9.3 16.6 37 66 103 149 203 233 265 299 336 415
100 10 18 43 75 116 168 227 262 298 335 377 465
