Description

VLVBDY-3012 | The CS Supply Small Valve body for small viper valves (Part 9 on the Valve Diagram).

Features

Small Valve body for viper valve models: 1530/1560/3012/7515/1550/2510/5016

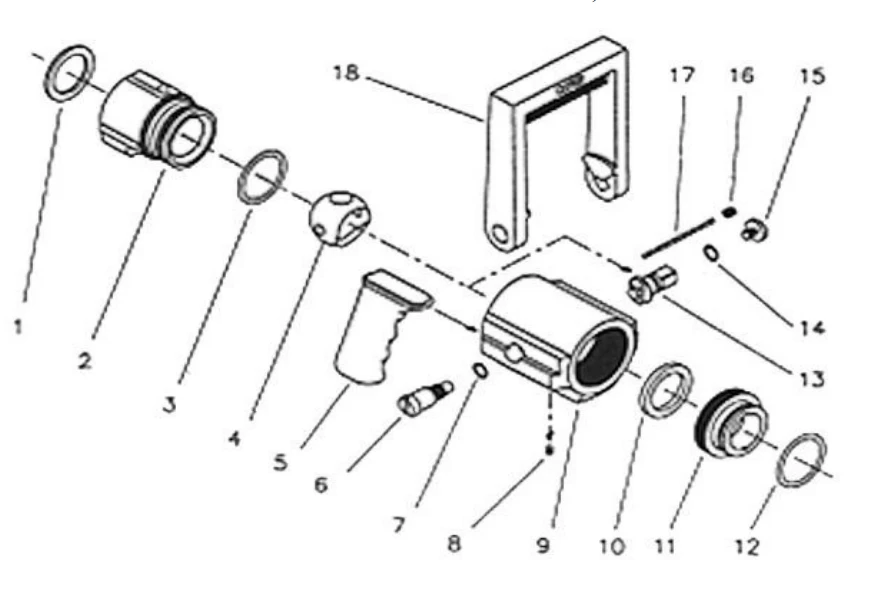

Part # 9 in the small valve diagram
How to video below

Spare Parts

REFERENCE	PART NAME	PART #	QUANTITY
1	1" GASKET	GASKET 1	1
1a	1.5" GASKET	GASKET 15	1
2	1" SWIVEL	V-1" SWIVEL	1
2a	1.5" SWIVEL	V-1.5" SWIVEL	1
3	SWIVEL O-RING	V-ORlNG-SW-3012	1
4	BALL	V-BALL-3012	1
5	PISTOL GRIP	V-PG15V	1
6	BALL LOCATOR (2 PIECES)	V-BALLLOC-3012	1
7	BALL LOCATOR (2 PIECES)	V-BALLLOC-3012	1
8	PISTOL GRIP SET PIN	V-SETPIN-3012	1
9	VALVE BODY	VLVBDY-3012	1
10	SEAT RETAINER (3 PIECES)	V-SEATRTNR-3012	1
11
12
13	BALL ACUATOR (2 PEICES)	V-BALLACT-3012	1
14	BALL ACUATOR (2 PEICES)	V-BALLACT-3012	1
15	PAN HEAD COVER	V-PANHEAD-3012	1
16	SWIVEL SET PIN	V-SETPIN-3012	1
17	BALL BEARINGS	V-BEARINGS-3012	32
18	HANDLE (BAIL)	V-HANDLE-3012	1

Valve Maintenance for a Viper Nozzle

Taking it apart

Remove handle hardware screws; parts 15 and 6 on the Diagram
Pull the bail off the body of the nozzle; part 18
Remove the tip of the valve (this simply un-screws, a recessed lug spanner might help with VB1560 tip); part not shown on diagram
Unscrew the seat retainer Assembly; parts 10, 11 and 12
The ball can now be pulled out; part 4
The ball actuator can be pulled out by pushing it into the valve body; part 13
Remove the swivel set pin and twist the swivel until all the ball bearings are out; parts 16, 17
Pull the swivel out of the valve body; parts 1, 2, 3
Clean the valve and its parts with ‘non-detergent’ soap and water if necessary

Putting it back together

Place the new actuator in the hole that the old one came out of with the trunion horizontal (in-line with the valve); part 13
Place the ball into the valve body with the ball facing up this makes the flat part the front when the ball is closed. If you have the new metal ball either way is fine; part 4
Holding the ball, place the bail back on the valve body; part 18
Put thread locker on the ball locator pin and screw it back into the valve body through the bail; part 6 (the bail should now actuate the movement of the ball)
Replace the seat retainer assembly. Tighten it down till there is no leak around the ball if there is a small leak around the threads the tip will stop that; parts 10,11, and 12
Grease the swivel O-ring (part 3) and the ball bearing track. Insert the swivel into the valve body; parts 1, 2, and 3
Insert the ball bearings (there are about 30). Place thread locker on the swivel set screw and insert it into the valve body, so the top of the screw is flush with the valve body
Replace the tip and tighten it down
Test the valve before using
