C&S Supply Wye Valve Spare Parts for WV1010 or WV1510 - 1" Male Adapter Outlet | Z-1725

C&S Supply Wye Valve Spare Parts for WV1010 or WV1510 - 1" Male Adapter Outlet | Z-1725

$40.60
  • SKU: Z-1725
  • Availability: Ships in 24 to 48 hrs
  • disabledmerchant: true
  • is_free_shipping: true
Availability: Ships in 24 to 48 hrs
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Z-1725 | The C&S Supply Male adapter for WV1010 OR WV1510 Specify threads. (Item. 15)

Features

  • Lightweight aluminum construction
  • Hard anodized
  • 1" Male adapter outlet
  • Only for WV1010 or WV1510 valves
  • Specify threads - NST or NPSH

Additional Information

  • Weight: 0.50 LBS

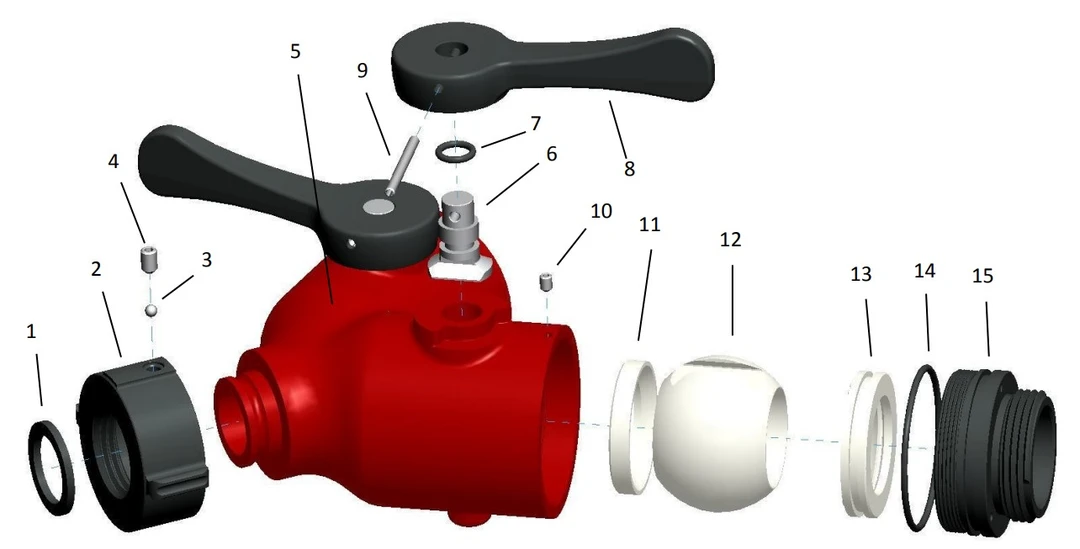

WV1010 Spare Parts

ΙΤΕΜ QTY P/N DESCRlPTlON MATERlAL
1 1 GASKET_10 GASKET, 1" SBR-70-BLACK
1 1736_10_ΝΗ SWlVEL ΝUT, 1" NST 6061-Τ6-ΑLUΜ
2B 1 1736_10_NP SWlVEL ΝUT, 1" NPSH 6061-Τ6-ΑLUΜ
3 30 1611 BALL BEARINGS, 3/16" 303 STAIN STL
4 1 1610 SΕΤ SCREW, 1/4“-28 Χ 3/8" 6061-T6-ALUM
5 1 1701_10 WYE, BODY, 1010 356-Τ6- ALUM
6 2 1718 SHAFT 6061-T6-ALUM
7 2 0-111 O-RlNG, 111 SHAFT BUΝΑ-70
8 2 1742 HANDLE 6061-Τ6-ΑLUΜ
9 2 1708 ROLL ΡΙΝ, 5/32" Χ 1.75“ 303 STAlN STL
10 2 1724 SΕΤ SCREW, 10“-32 Χ 3/16" BLACK STL
11 2 1711 BALL SEAT NΥLΟΝ
12 2 1715 BALL NΥLΟΝ
13 2 1722 BALL SEAL TPU
14 2 0-141 O-RlNG ΜΑLΕ ΕΝD BUΝΑ-70
15Α 2 1725_ΝΗ OUTLET, ΜΑLΕ 1" NST 6061-T6-ALUM
158 2 1725_NP OUTLET, ΜΑLΕ 1" NPSH 6061-Τ6-ΑLUΜ
