C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15

Ask Questions
C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15
C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15
C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15
C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15

C&S Supply Wye Valve Spare Parts for WV15 or WV1510 - Swivel Nut | Z-1736_15

$43.40
  • SKU: Z-1736_15
  • Availability: Ships in 24 to 48 hrs
  • disabledmerchant: true
  • is_free_shipping: true
Availability: Ships in 24 to 48 hrs
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Z-1736_15 | The C&S Supply Swivel for C&S Wye Valves WV15 OR WV1510. NST & NPSH threads available. (Item. 2)

Features

  • Lightweight aluminum construction
  • Hard anodized
  • Only the Swivel Nut for WV15 or WV1510.
  • Specify threads - NST or NPSH

Additional Information

  • Weight: 0.20 LBS

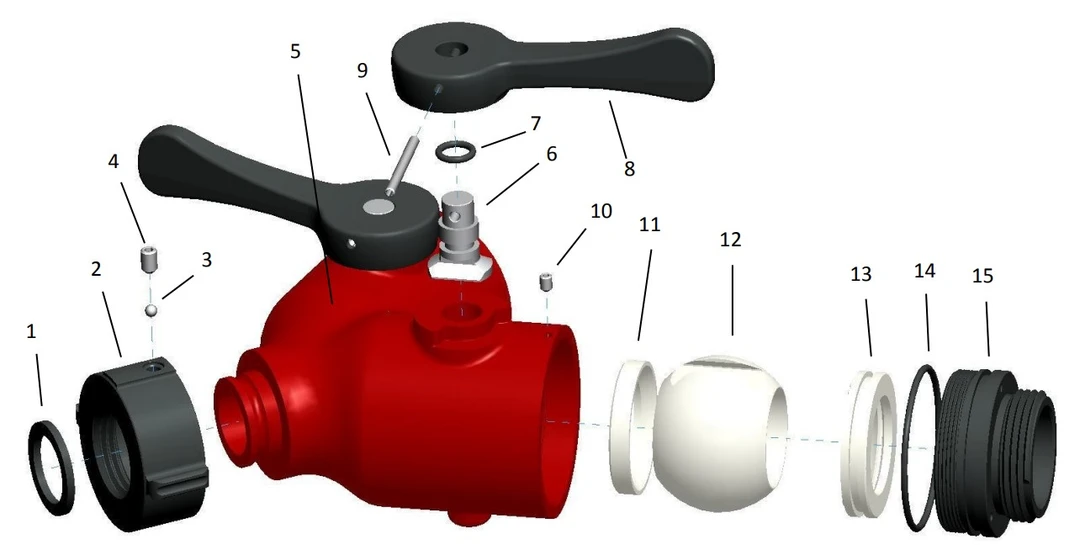

WV15 / WV1510 Spare Parts

ITEM QTY P/N DESCRIPTION MATERIAL
1 1 GASKET 15 GASKET, 1.5" SBR-70-BLACK
2A 1 1736_15_NH SWIVEL NUT, 1.5" NST 6061-T6 ALUM
2B 1 1736_15_NP SWIVEL NUT, 1.5" NPSH 6061-T6 ALUM
3 30 1611 BALL BEARINGS, 3/16" 303 STAIN STL
4 1 1610 SET SCREW, 1/4"-28 X 3/8" 6061-T6 ALUM
5 1 1701_15 BODY, WYE, 15/1510 356-T6 ALUM
6 2 1718 SHAFT 6061-T6 ALUM
7 2 0-111 O-RING, SHAFT BUNA-70
8 2 1742 HANDLE 6061-T6 ALUM
9 2 1708 ROLL PIN, 5/32" X 1.73' 303 STAIN STL
10 2 1724 SET SCREW, 10"-32 X 3/16" BLACK STL
11 2 1711 BALL SEAT NYLON
12 2 1715 BALL NYLON
13 2 1722 BALL SEAL TPU
14 2 0-141 O-RING MALE END BUNA-70
15A 2 1726_NH OUTLET, MALE 1.5" NST 6061-T6-ALUM
15B 2 1726_NP OUTLET, MALE 1.5" NPSH 6061-T6-ALUM
15C 2 1725_NH OUTLET, MALE 1" NST 6061-T6-ALUM
15D 2 1725_NP OUTLET, MALE 1" NPSH 6061-T6-ALUM
