C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH

Ask Questions
C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH
C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH
C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH
C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH

C&S Supply Wye Valve Spare Parts for WV2515 OR WV2510 - 2.5" Swivel Nut | Z-1603_NH

$49.29
  • SKU: Z-1603_NH
  • Availability: Ships in 24 to 48 hrs
  • disabledmerchant: true
  • is_free_shipping: true
Availability: Ships in 24 to 48 hrs
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Z-1603_NH | The C&S Supply Swivel for C&S Valves WV2515 OR WV2510 OR HGV25 - NST ONLY. (Item. 2)

Features

  • Lightweight aluminum construction
  • Hard anodized
  • 2-1/2" Swivel Nut
  • Only for WV2515 or WV2510 OR HGV25 valves.
  • NST Only

Additional Information

  • Weight: 0.80 LBS

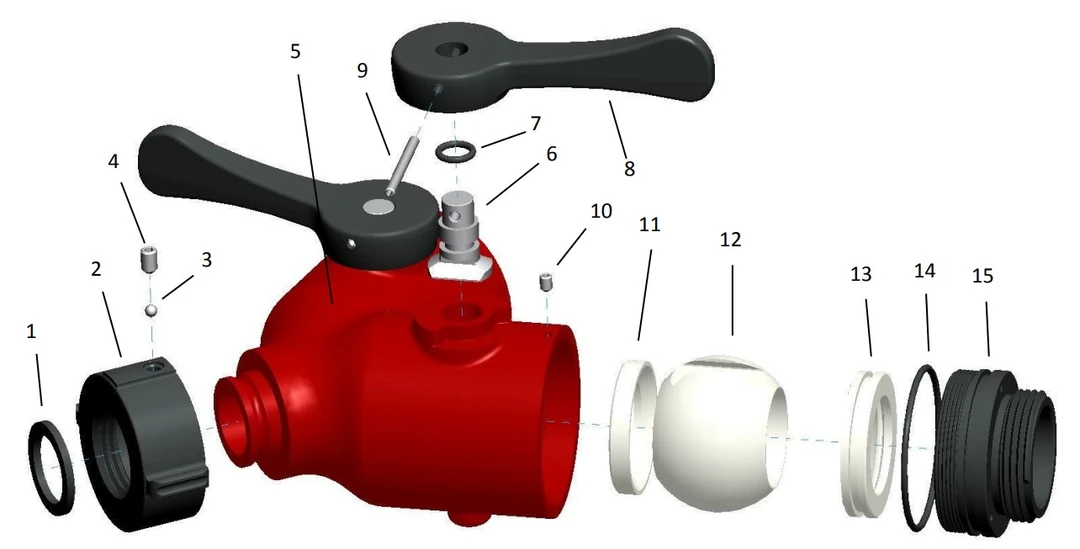

WV2515 / WV2510 Spare Parts

ITEM QTY P/N DESCRIPTION MATERIAL
1 1 GASKET 25 GASKET, 2.5" SBR-70-BLACK
2 1 1603_NH SWIVEL NUT, 2.5" NST 6061-T6 ALUM
3 45 1611 BALL BEARINGS, 3/16" 303 STAIN STL
4 1 1610 SET SCREW, 1/4"-28 X 3/8" 6061-T6 ALUM
5 1 1702 BODY, WYE, 2510/2515 356-T6 ALUM
6 2 1718 SHAFT 6061-T6 ALUM
7 2 0-111 O-RING, SHAFT BUNA-70
8 2 1742 HANDLE 6061-T6 ALUM
9 2 1708 ROLL PIN, 5/32" X 1.75" 303 STAIN STL
10 2 1724 SET SCREW, 10"-32 X 3/16" BLACK STL
11 2 1711 BALL SEAT NYLON
12 2 1715 BALL NYLON
13 2 1722 BALL SEAL TPU
14 2 0-141 O-RING MALE END BUNA-70
15A 2 1726_NH OUTLET, MALE 1.5" NST 6061-T6-ALUM
15B 2 172_NP OUTLET, MALE 1.3' NPSH 6061-T6-ALUM
15C 2 1725_NH OUTLET, MALE 1" NST 6061-T6-ALUM
15D 2 1725_NP OUTLET, MALE 1" NPSH 6061-T6-ALUM
