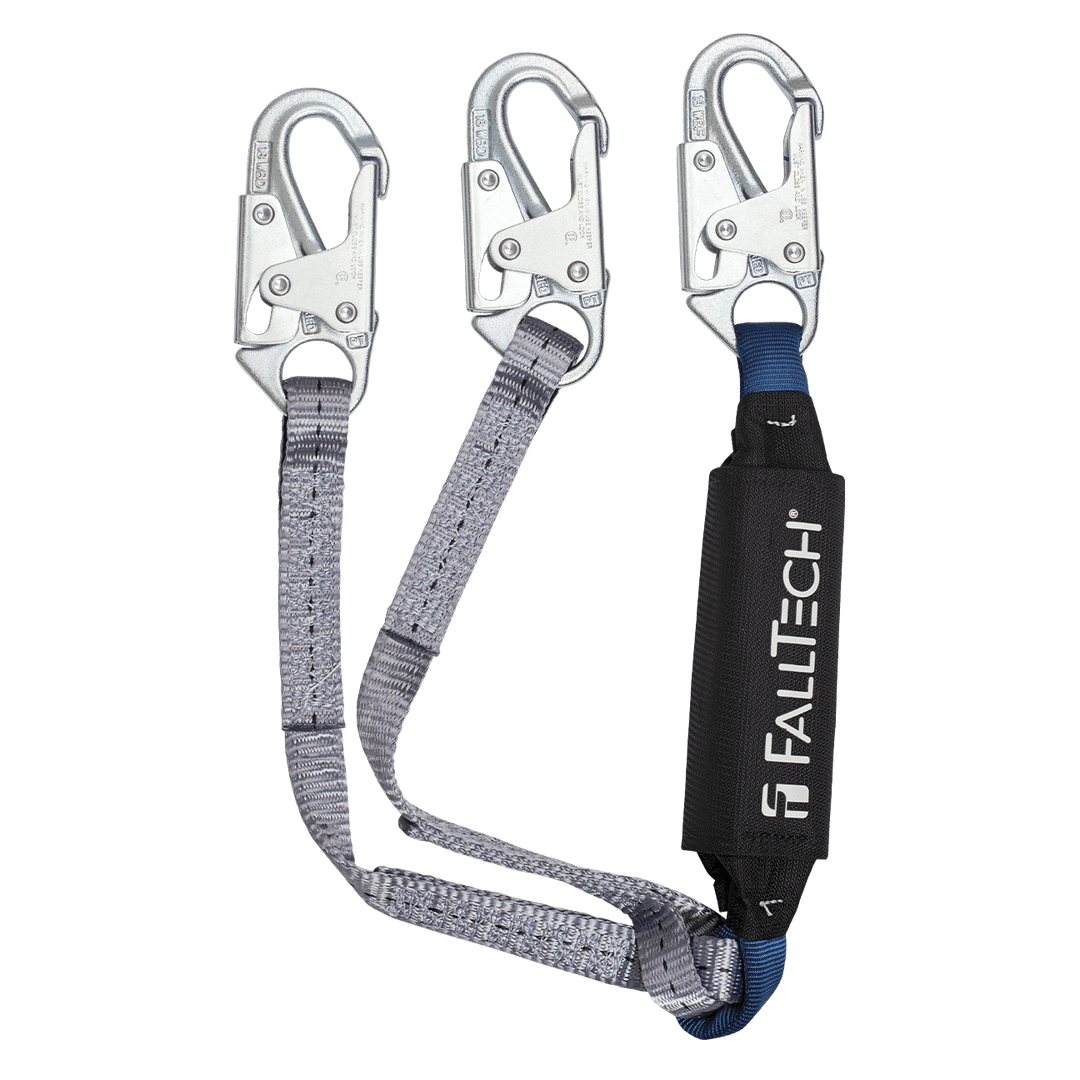

FEATURES

• Heavy-duty 1" polyester web construction throughout
• 3' length is ideally suited for applications where restricted fall clearances are present.
• Energy absorber features patented ViewPack® cover with inspection window
• ViewPack® cover also features WrapPack label protection
• Includes alloy steel snap hooks for harness attachment and anchorage connections
• Double-leg design facilitates 100% tie-off
• Complies with ANSI Z359.13-2013

MATERIAL SPECIFICATIONS

• Webbing: Polyester; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI Lanyard Class: 6' free fall
• Max. Arrest Distance: 48"
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. ANSI Z359.13-2013
