FEATURES

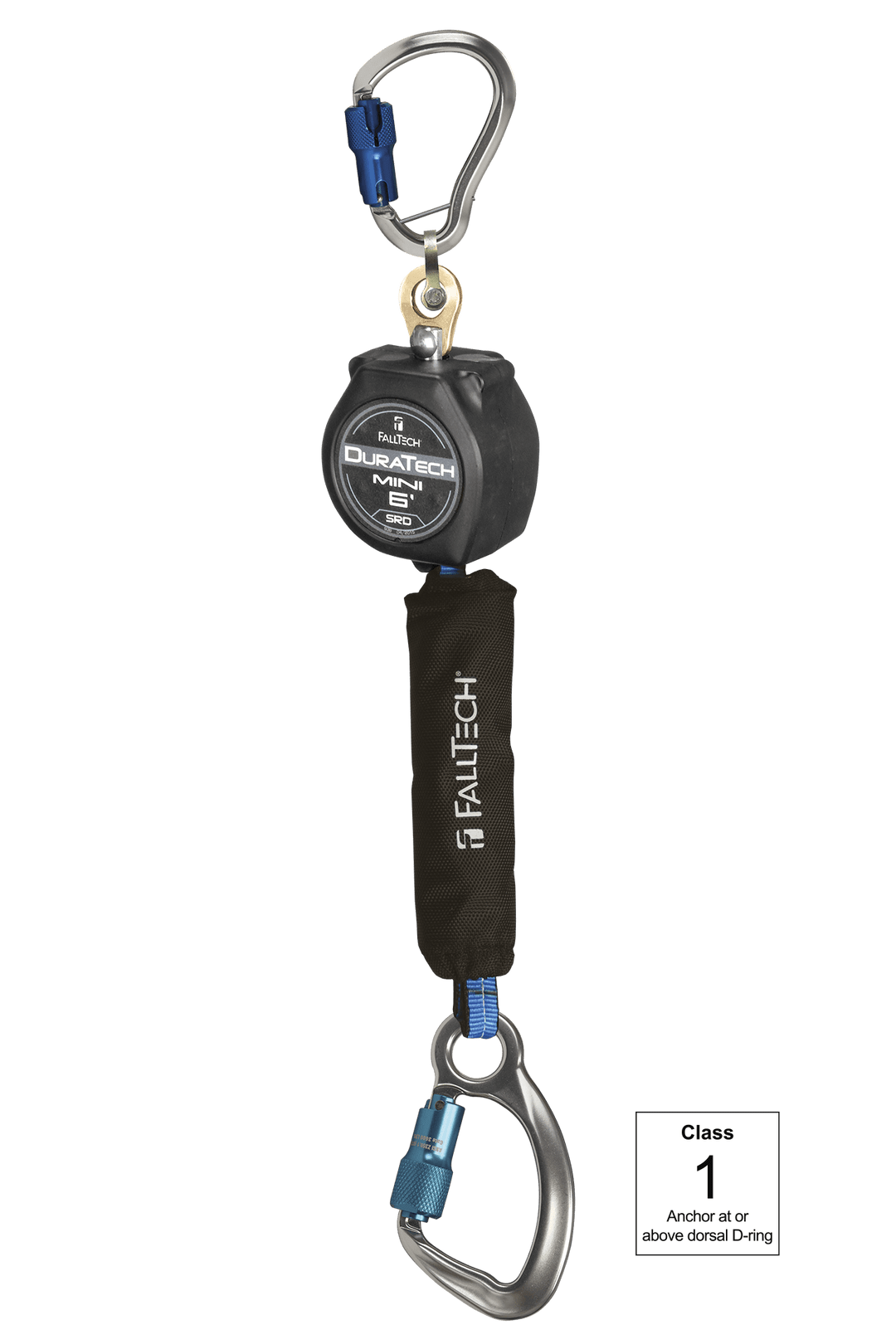

• Features internal locking pawls and ViewPack® external energy absorber for even deceleration
• Long-wearing Dyneema® web lifeline resists abrasion while providing trusted strength.
• Nylon housing provides impact resistance in most worksite conditions
• Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
• Features aluminum alloy carabiner anchorage connector
• Includes aluminum alloy dorsal connecting carabiner
• May be anchored up to 5' below the dorsal D-ring with no edge hazards for user's weighing up to 310 lb max.
• Complies with ANSI Z359.14-2021 Class 1 SRL-P. Learn more!

MATERIAL SPECIFICATIONS

• Webbing: Dyneema®/Polyester blend; 4,500 lb min.
• Energy Absorber: Polyester tear-away
• Buckles and Adjusters: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 1 SRL-P
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

AVAILABLE SIZES

• 72706SG6 (ANSI Compliant)

DOWNLOADS

• Instruction Manual (ANSI)
• Instruction Manual (CSA)
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. ANSI Z359.14-2021
3. CSA Z259.2.2-2017
