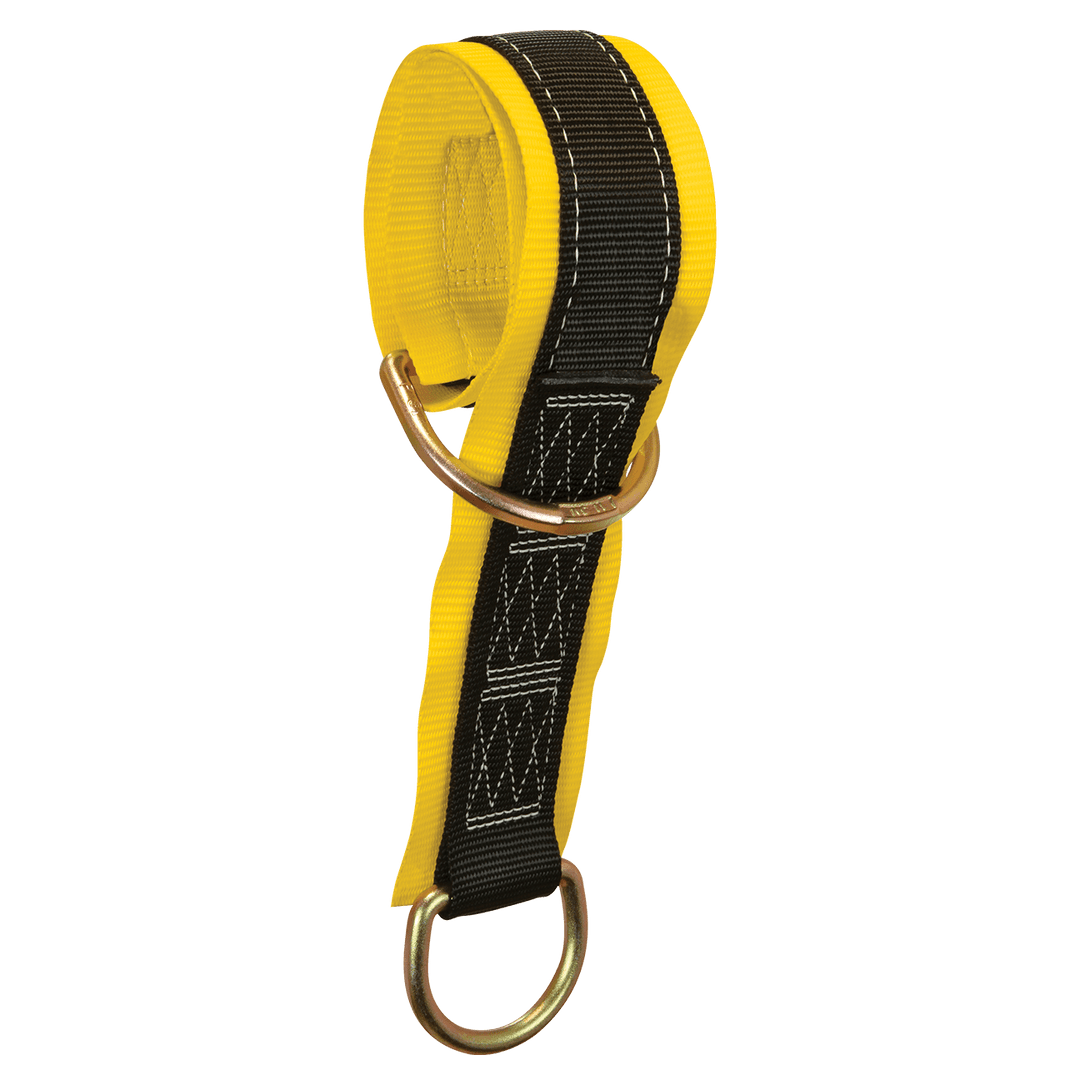

FallTech Pass-Through Sling Anchor

FEATURES

• Features 1-3/4" load-bearing web with 3" wide full-length wear pad for abrasion resistance
• Appropriately sized alloy steel D-rings provide simple pass-through choke-on installation.
• May be passed-through multiple times to shorten length
• Smaller D-ring facilitates connection point for SRLs and lanyards
• Each D-ring termination features three individual 2" box-stitches for longer life
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

• Webbing: Polyester; 5,000 lb min. static strength
• D-rings: Plated alloy steel; 5,000 lb min. static strength
• Wear Pad: 3" Polyester webbing

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 136 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

AVAILABLE SIZES

• 7372 - 6' (ANSI Compliant)
• 737208 - 8' (ANSI Compliant)
• 737210 - 10' (ANSI Compliant)

Note: Check out the Pass-Through Sling Anchor with Heavy-duty Wear Pad, Pass-Through Sling Anchor, Pass-Through Sling Anchor + Heavy-duty Wear Pad, Pass-Through Sling Anchor, Heavy-duty Wear Pad, and 30' Pass-Through Sling Anchor listings for more sizes.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Spec Sheet

COMPLIANT WITH:

• CSA Z259.15-2017
• OSHA 1926.502 and 1910.66
• ANSI Z359.18-2017
