FEATURES

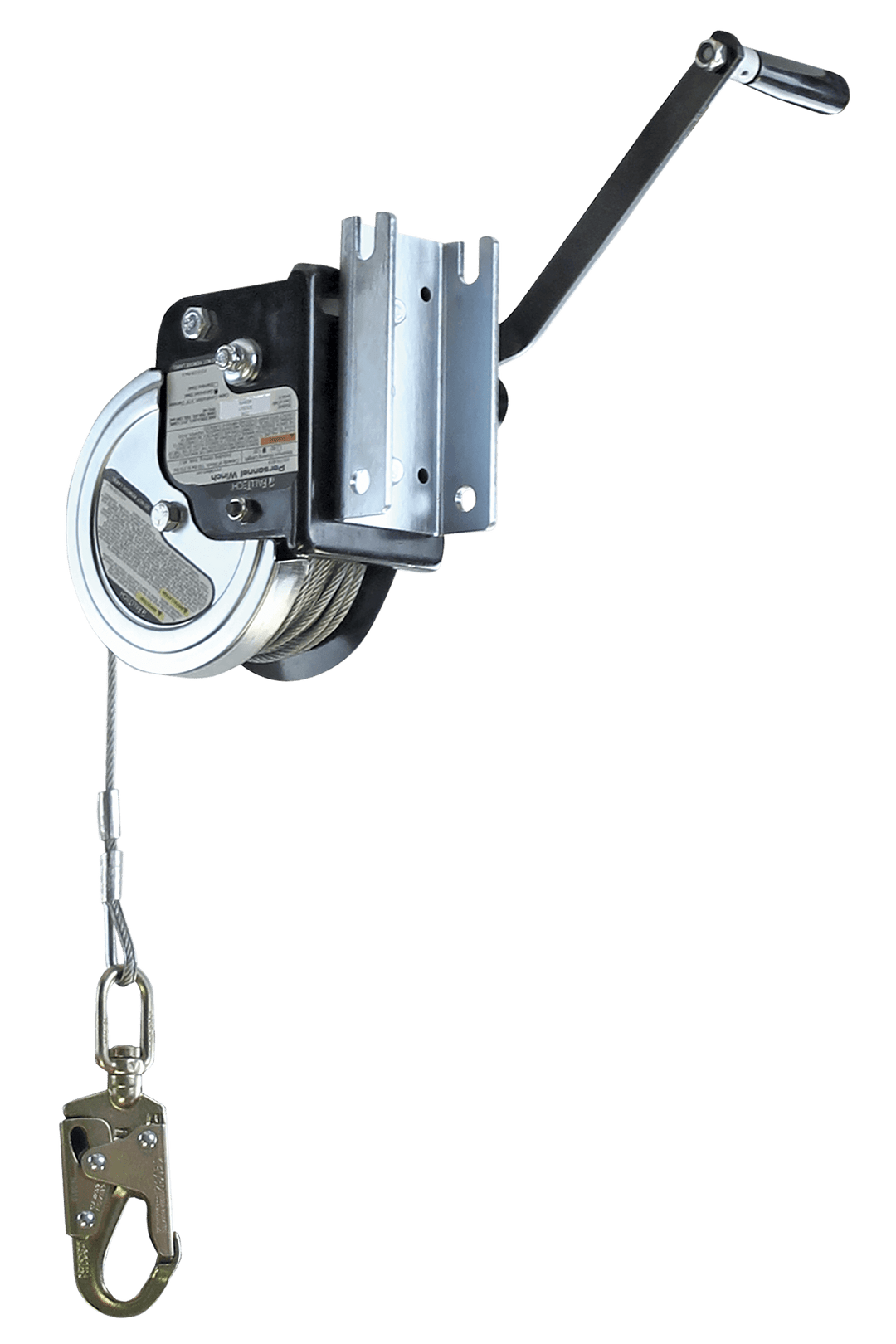

• Single user mechanical Winch for entering and exiting confined spaces
• 3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.
• Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
• Secondary braking system provides added safety in case of primary brake failure
• Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
• Includes 20" weather-resistant storage bag
• Winch is not intended for Material Handling purposes
• Complies with ANSI Z359.4-2013 and Z117.1-2009

MATERIAL SPECIFICATIONS

• Cable: 3/16" galvanized steel; 3,400 lb min. static strength
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Drive and Drum Gears: Plated alloy steel

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,100 lb min.
• Handle Operation Force: 30 lb max.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

AVAILABLE SIZES

• 7297 - 60'
• 7298 - 120'

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Sell Sheet/Brochure
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502, 126.1200 and 1910.146
2. ANSI Z359.4-2013 and Z117.1-2009
