Name: Pelsue Davit Permanent Fall Protection System
Brand: Pelsue
Rating: 0 (0 reviews)

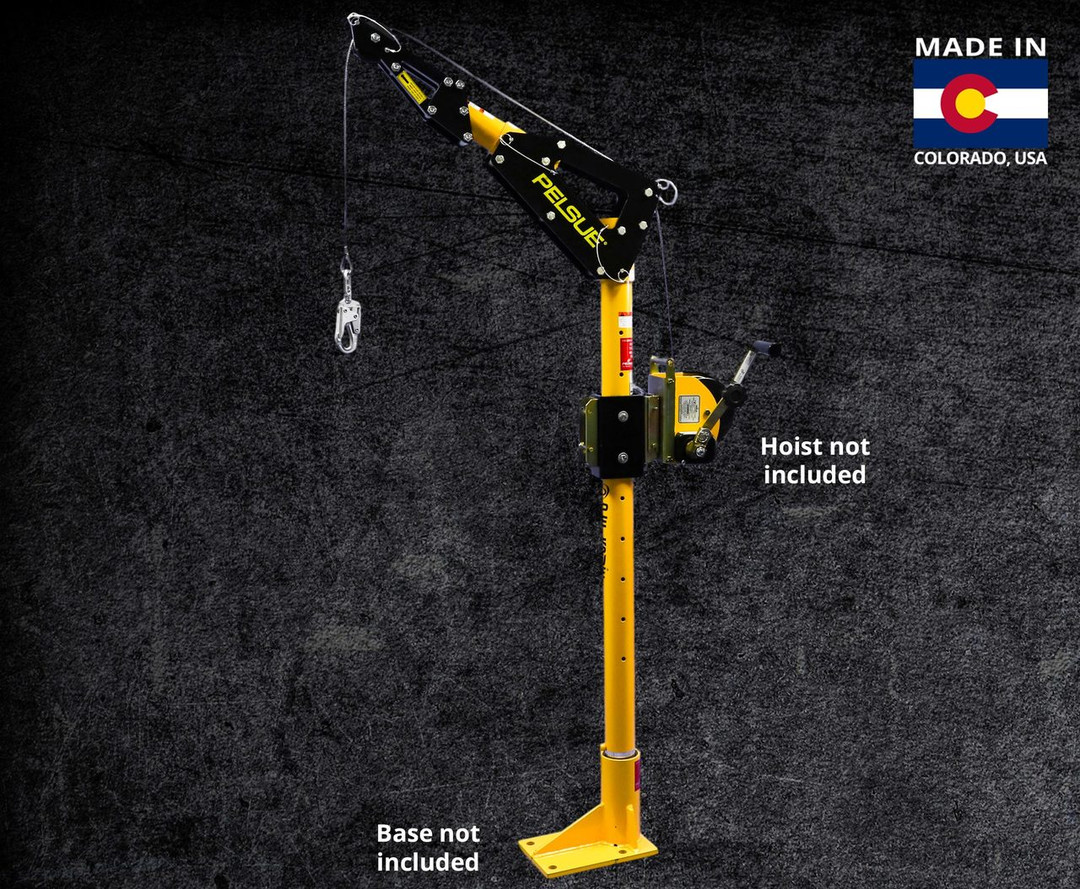

The Pelsue Permanent Davit System is extremely versatile and can be used for both fall protection and rescue & retrieval. The system includes a universal bracket for the mounting of a hoist, standard SRL, or 3-Way SRL, and offers an additional mounting location for using two systems.

All Pelsue Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specifically engineered to be fully set up in about 5 minutes. The Pelsue Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.

All Pelsue Davit Systems are man rated at 310 lbs.

Main Features

LIGHTWEIGHT
TWO HOIST MOUNTING LOCATIONS
EASY SET-UP

Complete Arms Description & Weight
DK1824 - Davit mast: includes center post (CP60), elbow (EM01) and 18"/24" offset arm (BA24), (base and hoist sold separately) Weight: 42 lbs.
DK3036 - Davit mast: includes center post (CP60), elbow (EM01) and 30"/36" offset arm (BA36), (base and hoist sold separately) Weight: 45 lbs.
DK4248 - Davit mast: includes center post (CP60), elbow (EM01) and 42"/48" offset arm (BA48), (base and hoist sold separately) Weight: 48 lbs.

Complete arms can be used in conjunction with portable bases to meet desired application.

Permanent Mount Sleeves

Advantages of Permanent Mount Sleeves:

Always on site
Provides greater offset reach
Allows 360° pivot

Floor Mounted - The floor mount is anchored by bolts, or it welds to a variety of surfaces such as floors, truck beds, catwalks, etc.

Center Floor Mounted - The center floor mount is anchored by bolts, or it welds to a variety of surfaces such as floors, truck beds, catwalks, etc.

Wall Mounted - The wall mount is anchored by bolts or welds to truck bumpers, tank walls, sides of catwalks, meter pits, clarifier's, etc.

Outside Corner Mounted - Outside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc.

Inside Corner Mounted - Inside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc.

Cylinder Core - The cylinder core mount is drilled into existing concrete or poured into fresh concrete, and must be secured to the concrete with grout or epoxy compatible with plant conditions.

Flush Floor Mounted - Placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern.

Outside Corner Mounted - The existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern.

Recommended Hoist Descriptions

Standard Hoist (PH07C): The Pelsue PH Series Hoists are designed and tested as retrieval and lifting devices as defined in OSHA Safety Standards for attaching a person that is entering or exiting a confined space.

Quick Release Retrieval Hoist (PHQR-T70): The Pelsue PHQR Series Hoists share nearly all the same features as the PH Series Hoists, but are unique in the fact that the lifting rope is not permanently fixed to the hoist drum.

Standard Self-Retracting Lifeline (PSRL1150-SS): Standard Self Retracting Lifelines (SRLs) are designed for use by construction workers, utility personnel, and maintenance repair employees needing on the job fall protection. They are also designed for confined space applications where fall protection and rescue & retrieval are extremely important.

3-Way Self-Retracting Lifeline (PSRL1350-TRB): If a worker slips or falls, the 3-Way SRL locks up to arrest the fall. The system can then be activated into winch mode, raising or lowering the worker to safety. The 3-Way is different than the standard SRL by adding retrieval/descender capabilities.

About Pelsue

Pelsue is the premier manufacturer of fall arrest and protection equipment. Based in Englewood, CO, Pelsue has been helping to keep workers safe since 1963.
