• Portable Fall Arrest Tower Base for installation on various structures (i.e. Wide Flanges, I-Beams)
• Telescoping tube sections to adjust for multiple beam sizes
• Provides an approved mounting base for an #FT-C70 fall arrest tower

About:

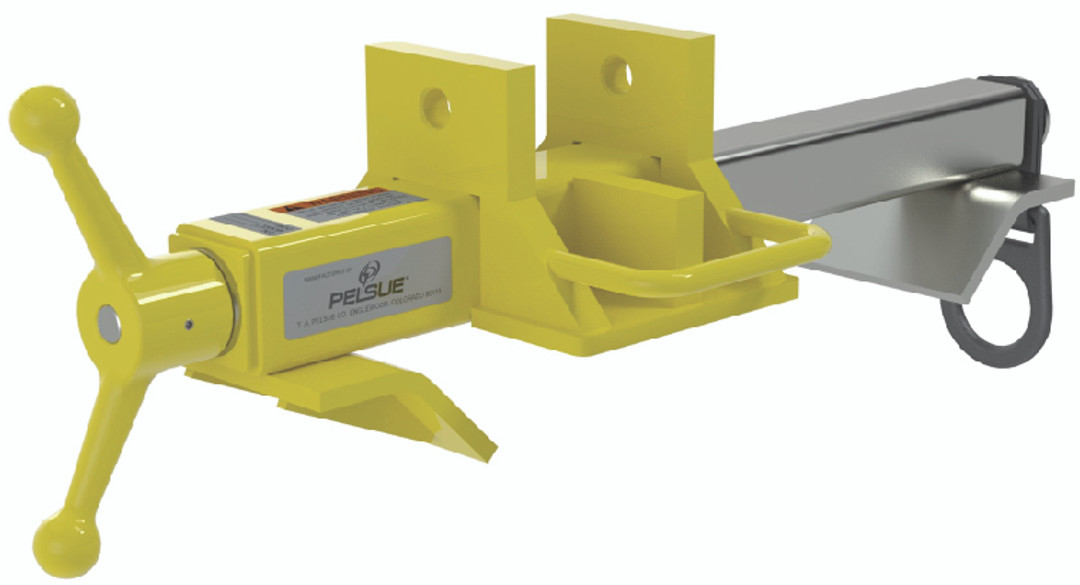

The Pelsue Model #BC-16S Structural Beam Clamp is specifically designed to provide a portable mounting point for a Pelsue Model #FT-C70 Fall Arrest Tower. The telescoping tube sections are able to be extended, via the speed handle, allowing for two, angled jaw plates to grip underneath the flange of the structure thereby anchoring the clamp to the structure. The Model #BC-16S will anchor to structures having an outside flange width between 8-3/4” & 16” and a flange thickness of up to 1”. The #BC-16S is also equipped with a swivel D-Ring that provides a compliant anchorage for a fall arrest system when the clamp is not used in conjunction with a fall arrest tower. The Model #BC-16S is constructed of steel and is coated with a durable electroless nickel plated finish.

General Specifications:
The #BC-16S is designed and tested to be used in 2 General Applications:

1. As a portable Fall Arrest Anchorage Point1.

• Man Rated Load Capacity @ Anchor D-Ring: Single User of 310 LBS. (141 KG.) Maximum Weight

2. As a portable mounting base for a Pelsue Model #FT-C70 Fall Arrest Tower when both products are employed and 2. utilized according to their respective Product Manuals.

• Man Rated Load Capacity Using Fall Arrest Tower: Rating is determined by fall arrest tower.

Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 310 LBS (141 KG.) inclusive of all tools and equipment.

Materials & Construction:
• General Construction: Welded Carbon Steel, Electroless Nickel Plating
• Hardware: Grade 5 Zinc Plated Steel

Weight:
• Weight: 40 lbs. (18.1 kg)
