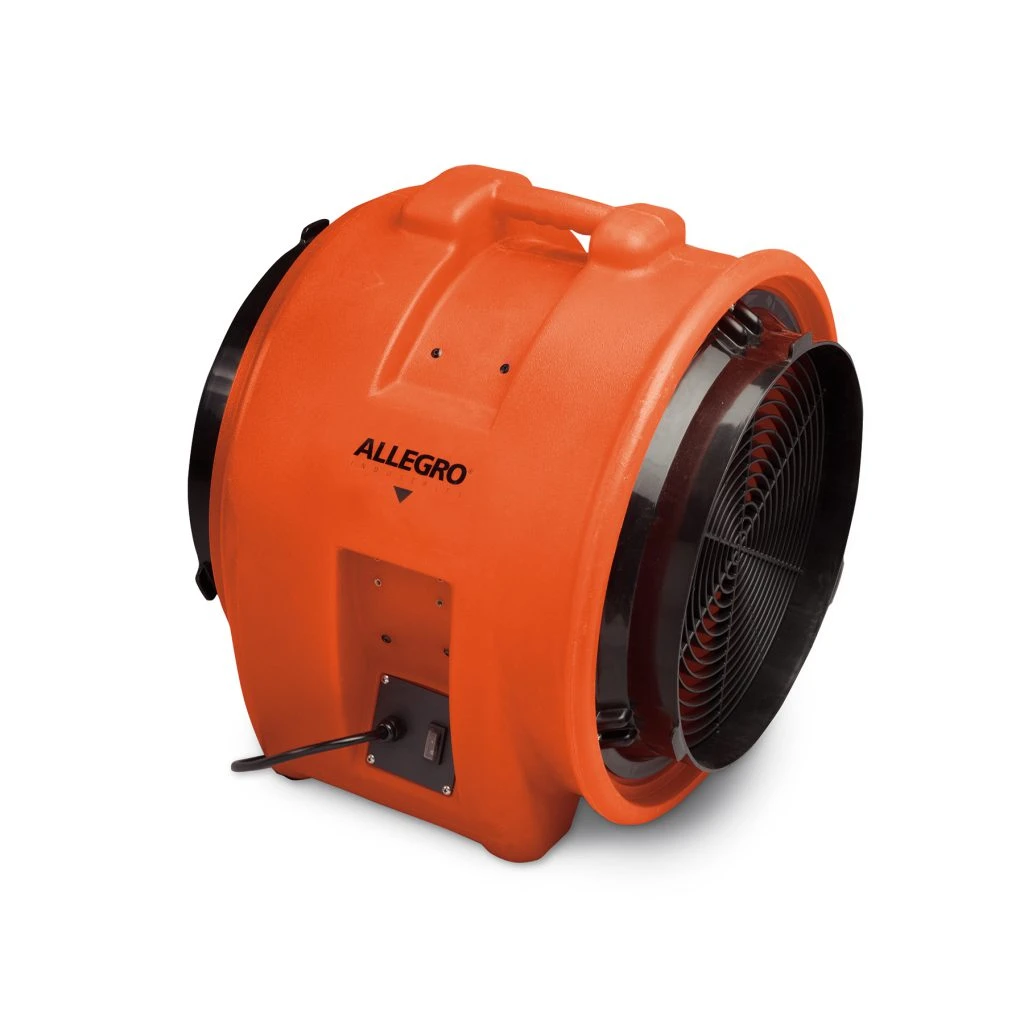

Allegro 16″ Axial AC Industrial Plastic Blower | 9539-16

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow.

CONSTRUCTION:

• Polyethylene housing
• Lightweight, corrosion, UV, and chemical resistant
• Super quiet, in “safety orange” housing
• Carry handle molded into blower and canister housing
• Black plastic grill

MOTOR:

• HP: 1 HP
• Certification: UL Listed, CSA Certified, CE Certified
• Voltage/Hz: 115V/60Hz, Single Phase
• RPM: 3450
• Amps: 9A
• Switch: Built in ON/OFF Rocker
• Cord: 15’ (4.57 m) (UL) SJT, 14 AWG
• Plug: NEMA 5-15P

FAN:

• Polypropylene three blade fan

DUCTING: (Optional – available in 15’ and 25’ lengths)

• Retractable, non-collapsible design, Single ply
• PVC coated vinyl and polyester materials
• Yellow color with black weather strip and integrated nylon attachment strap
• Spring steel wire helix



BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9539-16	20” (50.8 cm)	21” (53.3 cm)	22” (55.9 cm)	40 lbs. (18.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 16” (40.6 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
3200 CFM (5436.83 m3/hr)	2350 CFM (3992.67 m3/hr)	2250 CFM (3822.77 m3/hr)
