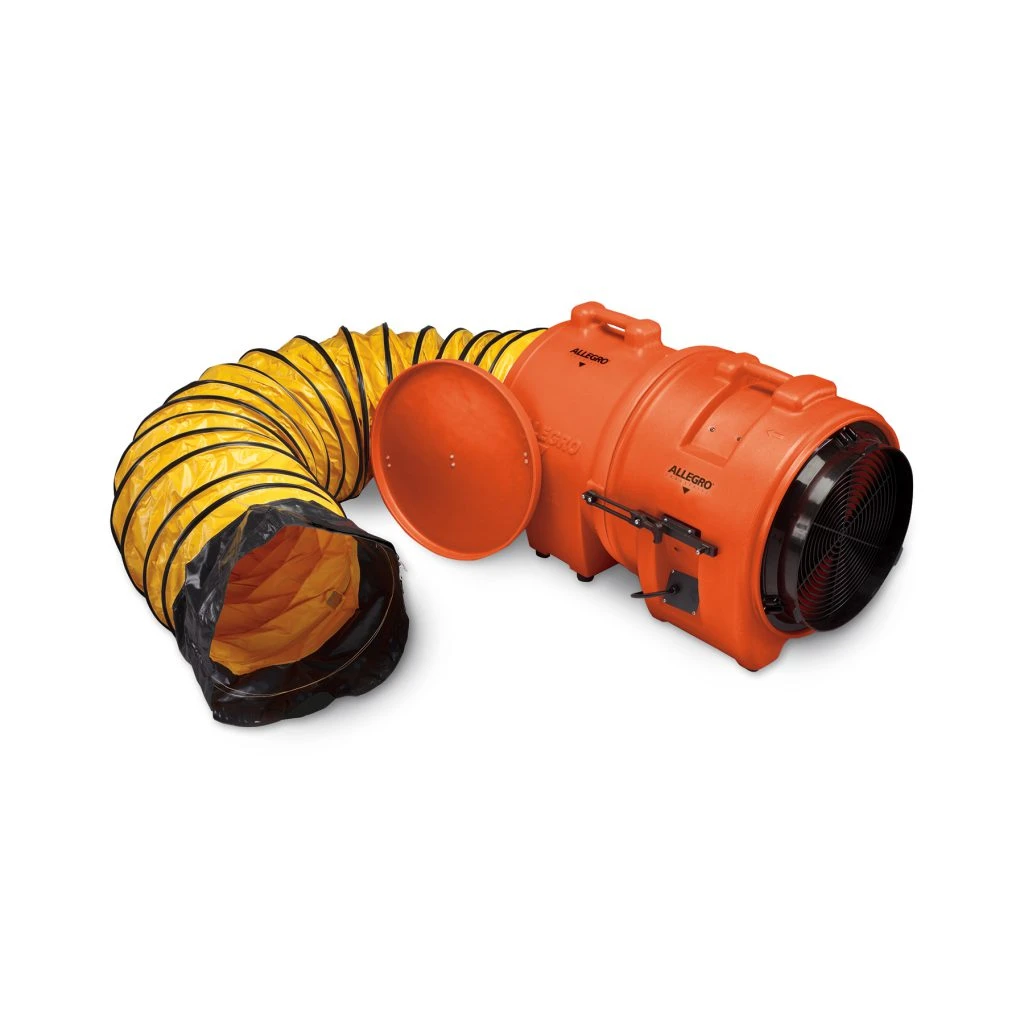

Allegro 16" Axial DC Plastic Blower with Canister and 15’ Ducting | 9556-15

Lightweight, portable, and durable, this DC blower has a ½ HP motor with an efficient six-blade impeller in a rugged housing. Suited for confined spaces such as tanks, or utility sites. The quick-connect system allows workers to attach the canister, tools free, to the input side for powerful extraction or output side for ventilation. This unit is constructed to be powered by a 12V car or truck battery for portable convenience.

CONSTRUCTION:

• Polyethylene housing, in “safety orange”
• Lightweight, corrosion-, UV- and chemical-resistant
• Super quiet
• Carry handle molded into blower and canister housing
• Black plastic grills
• 15’ (4.57 m) power cord with heavy duty battery clamps
• Easily accessible inline fuse

MOTOR:

• HP: ½ HP
• Voltage: 12V DC
• RPM: 1750
• Amps: 39A
• Fuse: 60A

FAN:

• Glass reinforced polypropylene (PPG), six-blade fan with aluminum hub

DUCTING: (included on 9556-15 and 9556-25 models)

• Retractable, non-collapsible design, Single ply
• PVC coated vinyl and polyester materials
• Yellow color with black weather strip and integrated nylon attachment strap
• Spring steel wire helix



BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9556	20” (50.8 cm)	22.5” (57.1 cm)	22.5” (57.1 cm)	48 lbs. (21.8 kg)
9556-15	34” (86.4 cm)	22.5” (57.1 cm)	22.5” (57.1 cm)	74 lbs. (33.6 kg)
9556-25	34” (86.4 cm)	22.5” (57.1 cm)	22.5” (57.1 cm)	81 lbs. (36.7 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 16” (40.6 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
2359 CFM (4008 m3/hr)	1666 CFM (2831 m3/hr)	1587 CFM (2696 m3/hr)
