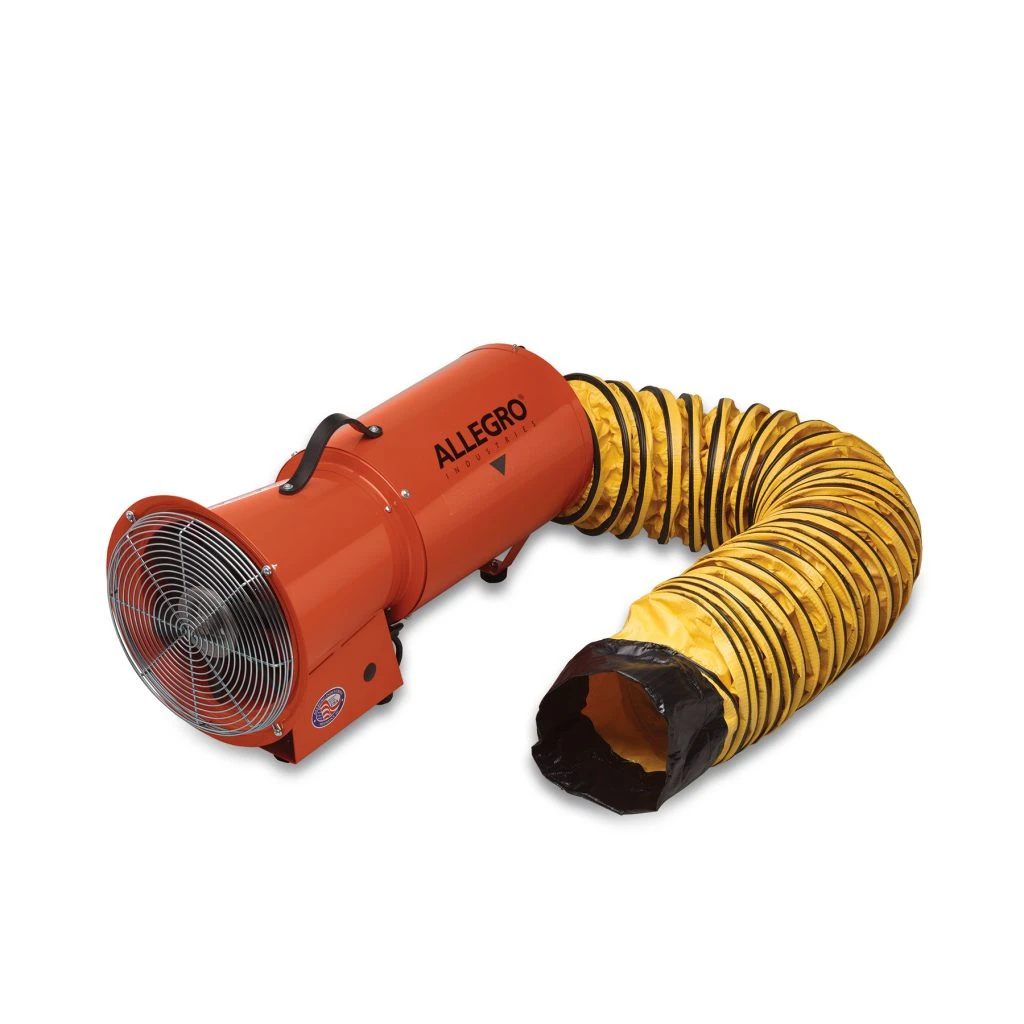

Allegro 8" Axial AC Blower with Canister and 25’ Ducting - 220V | 9514-25E

Highest output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Complete system with built in canister and ducting.

CONSTRUCTION:

• Epoxy powder coated in “safety orange”
• Flange on intake side
• 18 gauge cold rolled steel housing w/ welded motor mount construction
• Bottom panel enclosed to protect electrical components
• Glass reinforced polypropylene (PPG) 6 blade fan with aluminum hub
• Steel/chrome plated grill
• Carry handle made of 3-ply rubber belting
• Equipped with five rubber feet

MOTOR:

• HP: 1/3 HP 220V AC, Single Phase
• Certifications: CSA Approved
• Max RPM: 2700 (loaded at 220V, 50 Hz)
• Current Draw: 1.6A (loaded at 220V, 50 Hz)
• Capacitor: 7.5 MFD 370V AC
• Cord: 6’ (1.82 m) AWG 16/3 SJTW
• Switch: Inline ON/OFF integrated on cord

DUCTING: (included with model 9514-25E)

• Single ply lightweight vinyl with polyester, PVC coated 180° F (82.22° C) temperature resistant
• Meets UL 94V-O flammability specifications
• Non-collapsible retractable design
• Class 1 hard drawn spring steel wire helix, ASTM 227 Spec.
• Yellow color with black wearstrip, and integrated nylon strap at both ends



DIMENSIONS:

Part Number	Length	Width	Height	Weight
9513-E	14” (35.5 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	19 lbs. (8.6 kg)
9514-E	28” (71.1 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	32 lbs. (14.5 kg)
9514-25E	36” (91.4 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	40 lbs. (18.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
1275 CFM (2166.23 m3/hr)	661 CFM (1123.04 m3/hr)	582 CFM (988.82 m3/hr)



*Blowers offered in 220V/50 Hz configuration

**Air flow determined at 60 Hz
