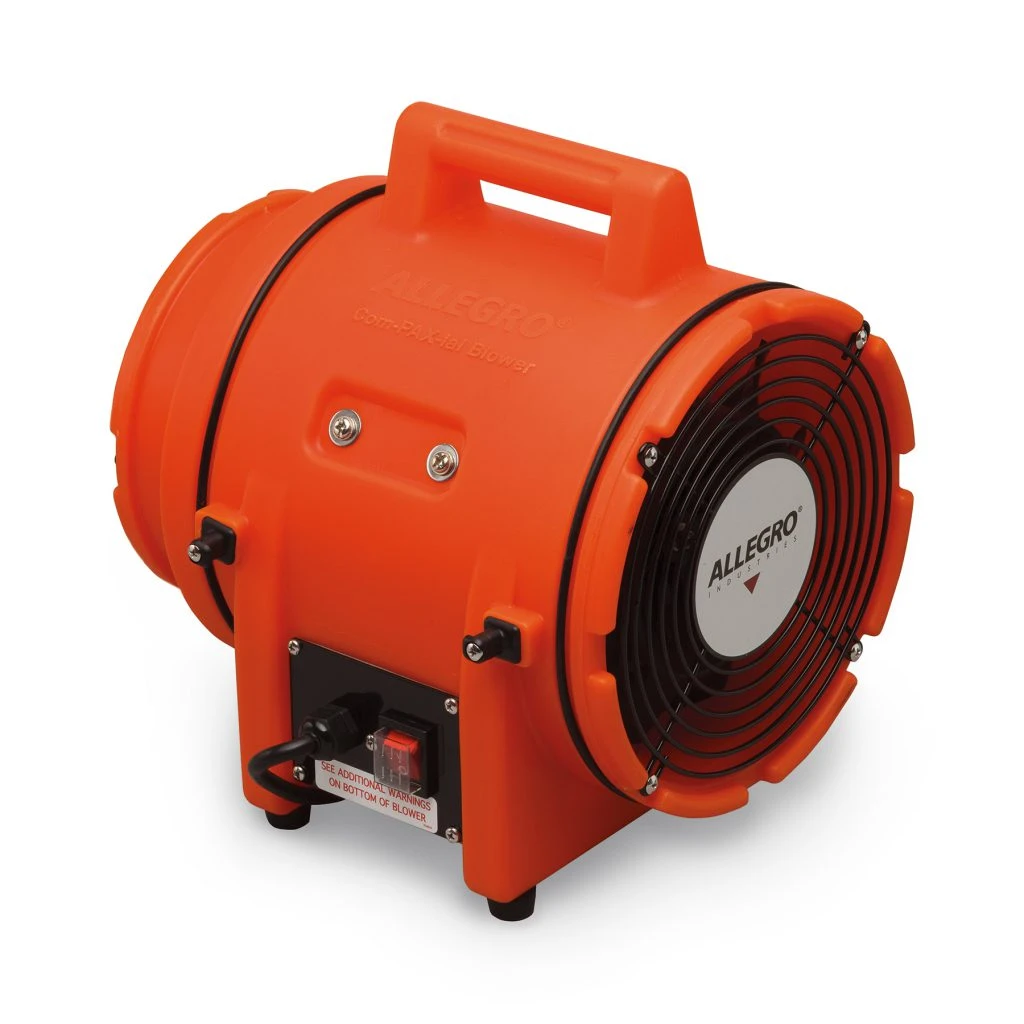

Allegro 8″ Axial AC Plastic Blower - 220V AC/50 Hz | 9533-E

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Available as blower only or complete unit with 15’ (4.75 m), 25’ (7.62 m) or 50’ (15.2 m) of ducting and storage canister. Canister attaches to intake or output of blower for suction or ventilation.

CONSTRUCTION:

• New compact canister in 9533-15E and 9533-25E models is the lightest and smallest in the industry!
• Polyethylene housing and canister assembly
• Lightweight, corrosion-, UV- and chemical-resistant
• Super quiet, in “safety orange”
• Bottom enclosure to protect electrical components
• Carry handle molded into blower and canister housing
• Steel powder coated grill

MOTOR:

• HP: 1/3 HP
• Voltage/Hz: 115V-230V AC, 50/60 Hz, Single Phase
• RPM: 2800/3400
• Switch: On/Off Rocker
• Amps: 4.8A-2.4A (50 Hz), 4.5A-2.2A (60 Hz)
• Cord: 10’ (3.05 m)

FAN:

• Polypropylene nine blade fan

DUCTING: (included on 9533-15, 9533-25 and 9533-50 models)

• Retractable, non-collapsible design
• Single ply, PVC coated vinyl and polyester materials, temperature resistant up to 180° F (82.2° C)
• Yellow color with black weather strip and integrated nylon attachment strap
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs



BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9533-E	13 ¼” (33.6 cm)	12” (30.4 cm)	13 ¾” (34.9 cm)	17 lbs. (7.7 kg)
9533-15E	26” (66.0 cm)	13 ½” (34.2 cm)	14 ½” (36.8 cm)	25 lbs. (11.3 kg)
9533-25E	26” (66.0 cm)	13 ½” (34.2 cm)	14 ½” (36.8 cm)	30 lbs. (13.6 kg)
9533-50E	32” (81.3 cm)	13 ½” (34.2 cm)	14 ½” (36.8 cm)	40 lbs. (18.1 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
831 CFM (1411.87 m3/hr)	709 CFM (1204.59 m3/hr)	586 CFM (995.62 m3/hr)

*Air flow determined at 60 Hz
