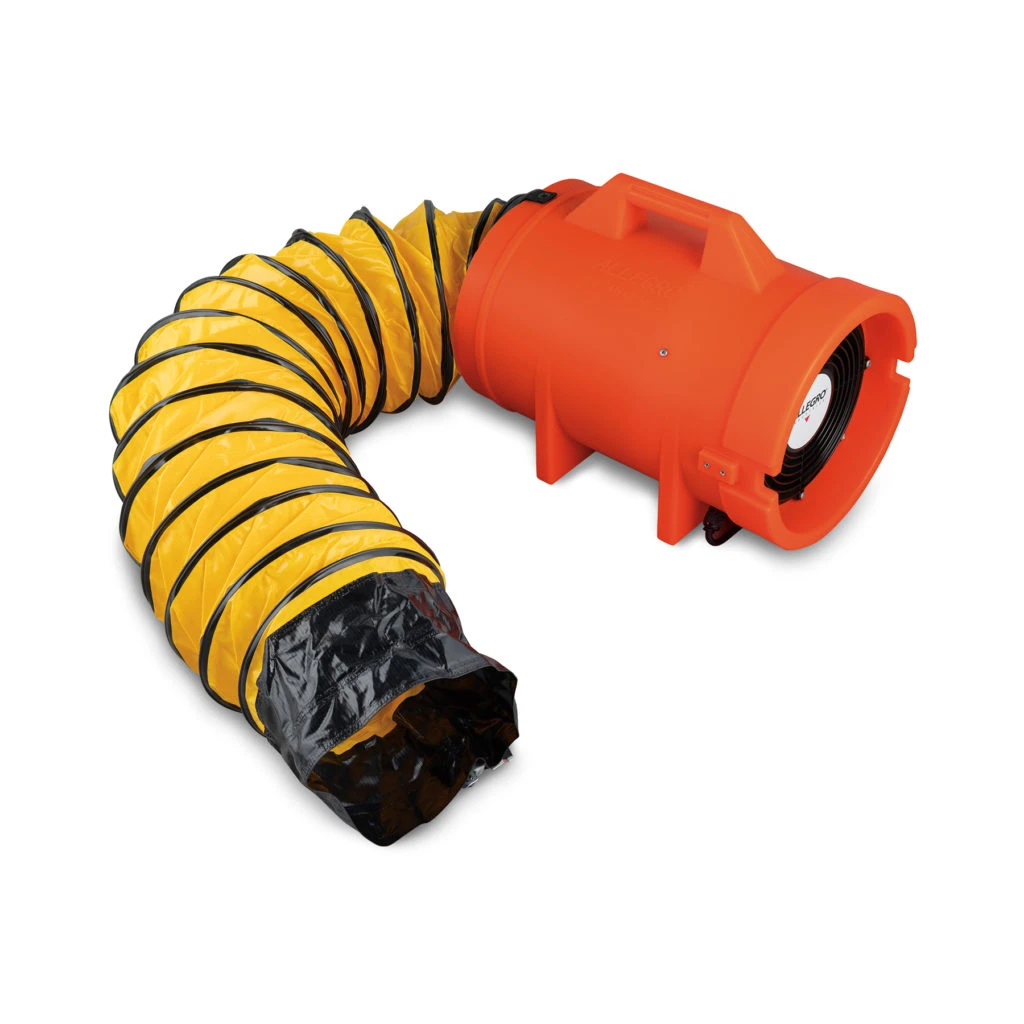

Allegro 8" Axial AC Plastic Mini-Pak Blower with 15' Ducting - 220V AC/50 Hz | 9532-15E

This high output blower’s compact design stores ducting inside the blower housing for an all-in-one unit for ease of operation, transportation, and storage! Available with either 15’ (4.75 m) or 25’ (7.62 m) of ducting, this new design is now the lightest and shortest in the industry!

CONSTRUCTION:

• Polyethylene housing
• Lightweight, corrosion-, UV- and chemical-resistant
• Super quiet, in “safety orange”
• Carry handle molded into blower and canister housing
• Steel powder coated grill
• A separate 12" (30.48 cm) duct (not included) can be attached to the intake side of the blower to draw air

MOTOR:

• HP: 1/3 HP
• Voltage/Hz: 115V-230V AC, 50/60 Hz, Single Phase, All World Motor
• RPM: 2850/3350
• Amps: 1.5A-0.7A (50 Hz) / 1.9A-1.0A (60 Hz)
• Cord: 6’ (1.83 m)
• Plug: NEMA 5-15P

FAN:

• 9-blade Polypropylene fan

DUCTING:

• Retractable, non-collapsible design
• Single ply, PVC coated vinyl and polyester materials, temperature resistant up to 180° F (82.2° C)
• Yellow color with black wearstrip and integrated nylon attachment strap
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs



BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9532-15, 9532-15E*	17 ½” (44.5 cm)	11 ¼” (28.6 cm)	13 ½” (34.3 cm)	19.4 lbs. (8.8 kg)
9532-25, 9532-25E*	17 ½” (44.5 cm)	11 ¼” (28.6 cm)	13 ½” (34.3 cm)	23.2 lbs. (10.5 kg)



**FLOW RATES:

PN	Free Air	One 90° Bend	Two 90° Bends
9532-15, 9532-15E*	791 CFM (1343 m3/hr)	703 CFM (1194 m3/hr)	621 CFM (1055 m3/hr)
9532-25, 9532-25E*	760 CFM (1291 m3/hr)	674 CFM (1145 m3/hr)	602 CFM (1022 m3/hr)

*E version blowers are 220V, 50 Hz
