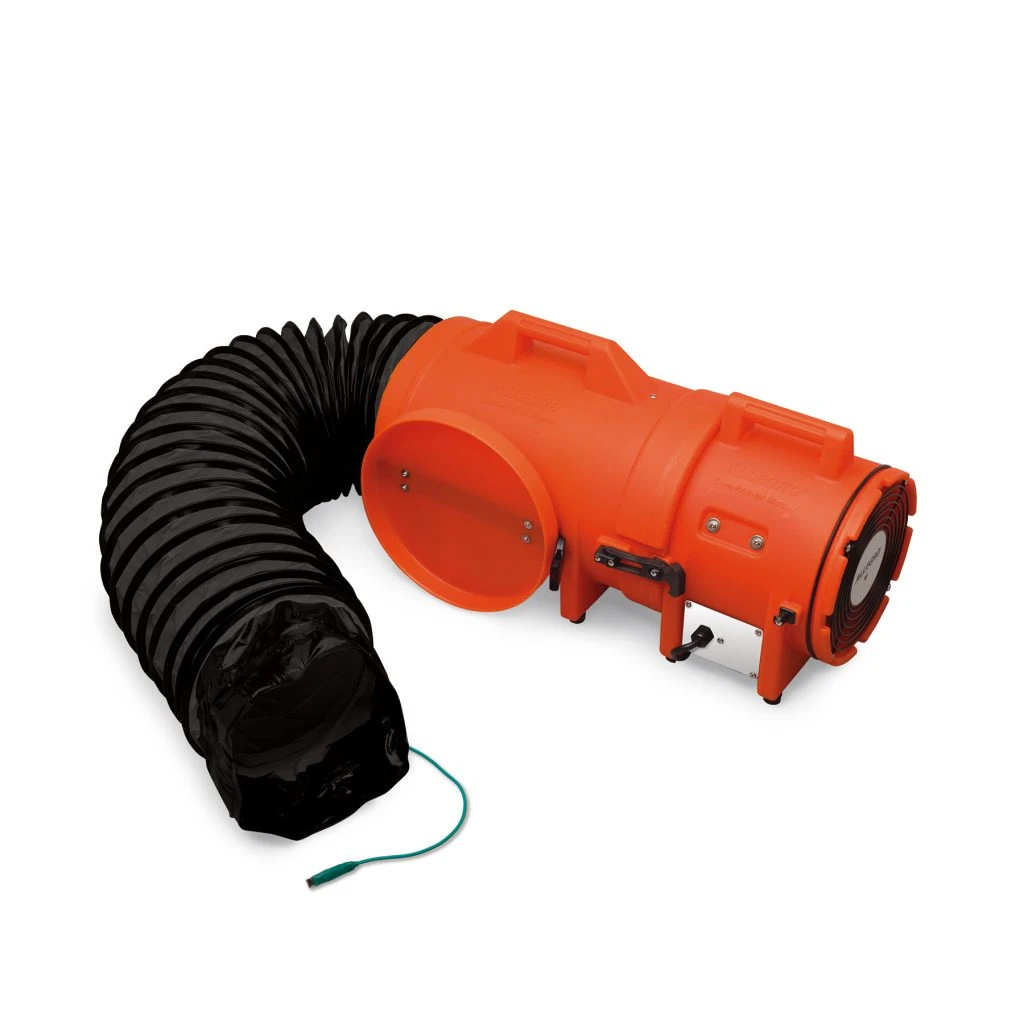

Name: Allegro 8" Axial Explosion-Proof (EX) Plastic Blower with Compact Canister and 25' Statically Conductive Ducting - 220V AC/50 Hz | 9538-25E
Brand: Allegro
SKU: 9538-25E
Availability: InStock

High performance axial style fan for various industrial applications. Designed compact with anti-corrosive polyethylene material for lightweight, durable use, and practical storage.

CONSTRUCTION:

Polyethylene frame
Double lip for entry or exit of duct or container
Fan with 9 polypropylene blades with aluminum center
Powder-coated steel grille. Black
Handle incorporated into the frame and duct holder
Four (4) rubber feet
Orange

MOTOR:

HP: 1/3 HP 115V AC, Single Phase, UL Listed
Full Power: 2750 RPM at 220 Volts, 50 Hz
Current Required: 1.2 Amps at 220V, 50 Hz
Capacitor: 7.5 MFD 370 VAC
Cord: 20' AWG 16/3 SJOOW 90C 300V in neoprene for medium duty
Receptacle: (OPTIONAL) Explosion-proof, three-tooth UGR type, metal shrinkage. Part No.: 9503-06 (Order separately)

HAZARDOUS LOCATION RATINGS:

Class: I	Class: II
Divisions: 1 & 2	Divisions: 1 & 2
Groups: C & D	Groups: F & G

BLOWER DIMENSIONS: (9538 - blower only)

Blower PN	Length	Width	Height	Weight
9538-E	13 ¼” (33.6 cm)	12” (30.4)	13 ¾” (34.9 cm)	17 lbs. (7.7 kg)
9538-15E	26” (66.0 cm)	13.5” (34.3)	14 ½” (36.8 cm) 2	25 lbs. (11.3 kg)
9538-25E	26” (66.0 cm)	13.5” (34.3)	14 ½” (36.8 cm) 2	30 lbs. (13.6 kg)
9538-50E	32” (81.3)	13.5” (34.3)	14 ½” (36.8 cm) 2	40 lbs. (18.1 kg)

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
900 CFM (1529.1 m3/hr)	650 CFM (1104.35 m3/hr)	625 CFM (1061.8 m3/hr)
