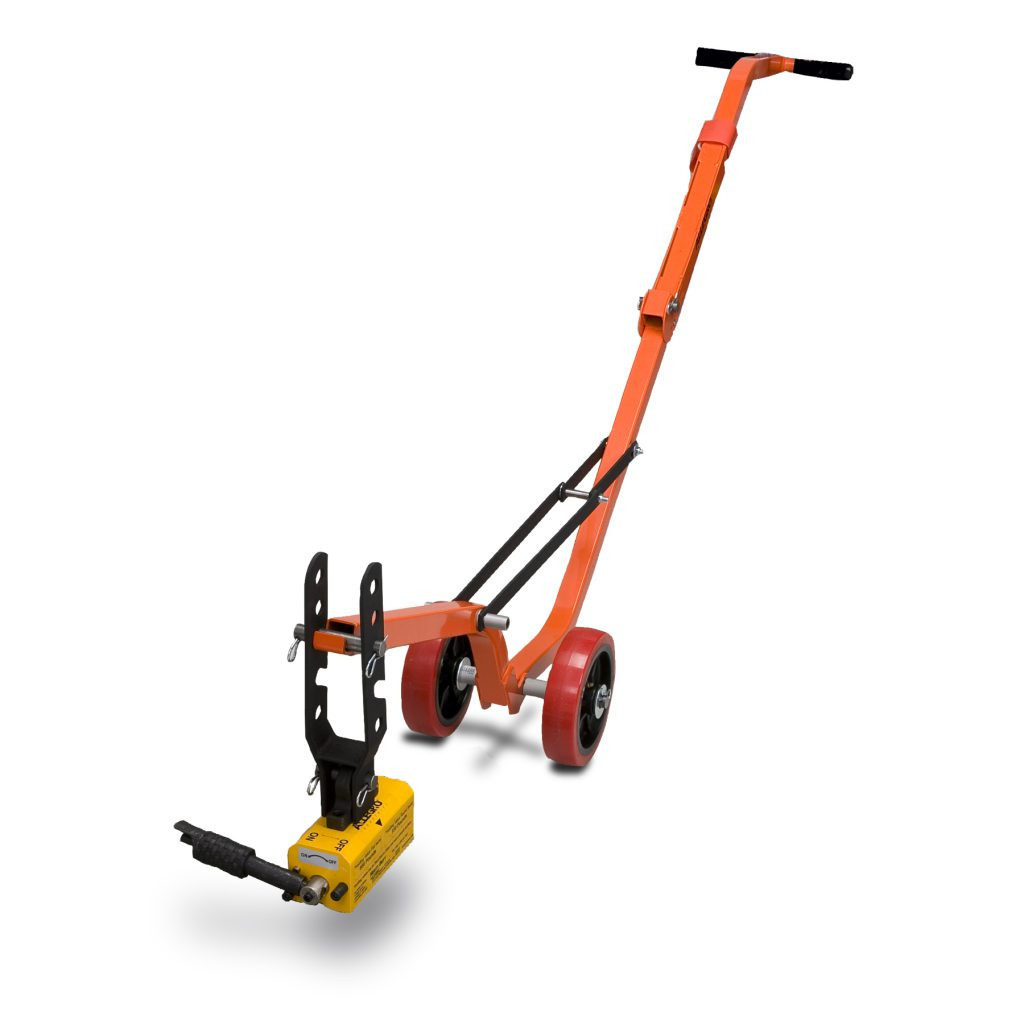

Allegro Magnetic Manhole Lid Lifter - Steel Dolly and Magnet | 9401-25

Allegro Magnetic Lid Lifter, Steel Dolly (Magnet lift weight: 660 lbs. flat items, 330 lbs. round items). Designed for quick and safe removal and replacement of manhole covers by yourself. Minimizes stress and strain on back and body. Collapsible for easy storage and transport. Can access uneven textured surface found on manhole covers with dual position lifting points to provide the power to break loose the most stubborn covers. Eliminates the use of pry bars. For safety purposes, the magnet must be in contact with manhole cover to be engaged. Moves manhole covers up to 36" (91.4 cm) in diameter. Offered with a steel or aluminum dolly.

FEATURES:

• Dolly
  • Steel or lightweight aluminum construction
  • Dual position lifting points provide the power to break loose the most stubborn covers
  • Breaks down for easy storage
• Magnet
  • Clamps to cover without any special tools
  • Eliminates the use of pry bars
  • For safety purposes, must be in contact with the cover to be engaged
  • Available in two strengths

ACCESSORIES:

a) Puncture Proof Wheels (9401-29)

• 10” (25.4 cm) in size
• Increases foot print for use on soft ground
• Drop axles ensure height remains the same as when using standard wheels

b) Storm Grate Lifting Adapter (9401-30)

• Three hooks allow for easy lifting of rectangular grates
• 250 lbs. (113.4 kg) lifting capacity with dolly

c) Spreader Bar (9401-31)

• Allows use of two magnets simultaneously
• Bar hangs onto existing dolly without need to assemble

d) Hook (and Chain) (9401-32)

• Designed to angle the hook for those hard-to-reach manholes
• Zinc-plated, 5/0 chain
• Made of 4130 tempered steel, heat treated to 3-35 RC & oil quench
• Anchor shackle and threaded connector included

e) Extension (9401-33)

• Extends overall length by 7 inches (17.8 cm)
• Attaches to existing dolly with set screw and pin
