If your concrete is already poured, the DSS-F3 Flush Floor Mount Sleeve (stainless steel) is the fit, drilled and bolted into existing concrete, or welded or bolted into steel, and finished flush with the floor to avoid trip hazards in high-traffic areas. This configuration pairs it with the DK1824 mast: 18"/24" offset reach, 42 lbs, structural aluminum, CP60 center post and EM01 elbow included. Setup takes about 5 minutes; the system is man-rated to 310 lbs.

Permanent mount sleeves like this one provide:

Always on site
Provides greater offset reach
Allows 360° pivot

Note: This combination covers the mast and sleeve only, you'll still need to add a hoist, Standard SRL, or 3-Way SRL (sold separately) plus its bracket (MB-PF1 for hoists, MB-FSB for Standard SRLs) to complete the system. The Davit System's universal bracket mounts one device, with an additional mounting location available for a second hoist or SRL if your application needs both.

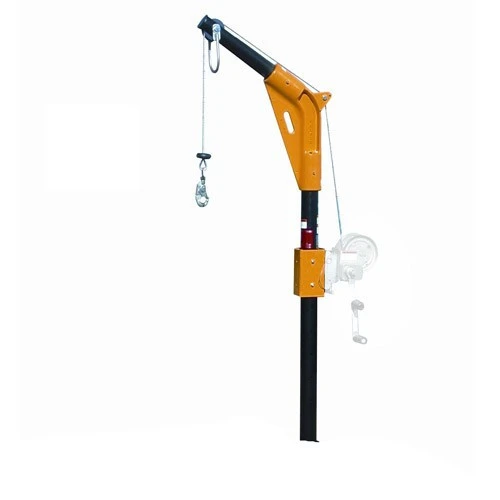

Pelsue Permanent Davit System - DK1824 Mast (18"/24" Offset) + DSS-F3 Flush Floor Mount Sleeve (Existing Concrete)

Product Description
