Pelsue Uni-Lite Portable Fall Arrest Post + AC-28RX Anchor Clamp (16"-28", Hex Drive)

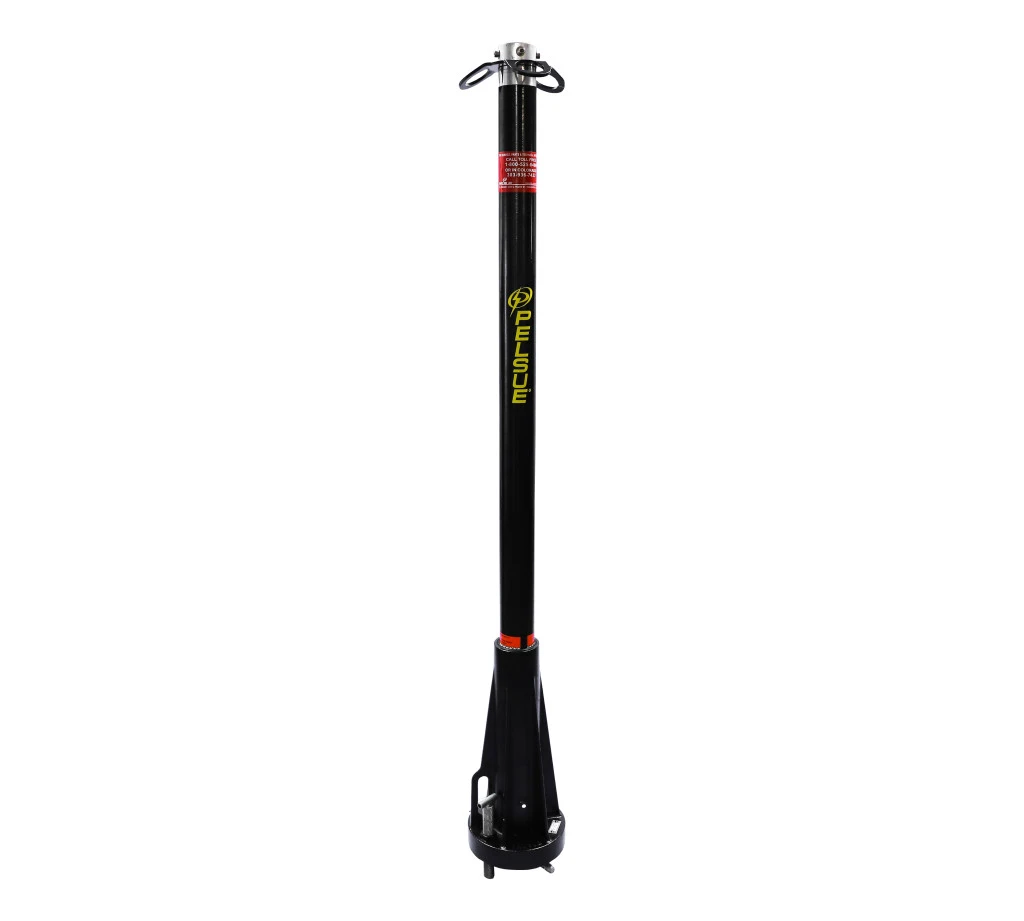

The Pelsue Uni-Lite Fall Arrest Post (FT-C70) is a carbon fiber post that flexes under load to absorb fall force, offering a 360° swivel tie-off with three 5.8' anchor points for up to three-person use. It stands 9"D x 6'H and weighs 39 lbs.

Paired here with the AC-28RX Manway Anchor Clamp, designed to provide a portable mounting point for the FT-C70 on round manways. Telescoping tube sections extend via a hex drive hub, placing two rounded jaw plates underneath the manway flange to anchor the clamp; grip is adjustable for varying flange thicknesses. It anchors to manways with an outside flange diameter between 16" and 28" and a flange thickness of up to 1-1/4". Constructed of steel with a durable electroless nickel-plated finish.

AC-28RX General Specifications:

• Approved as a portable mounting base for the FT-C70 when both products are used per their respective manuals
• Man-rated load capacity using the fall arrest tower is determined by the tower itself
• Warning: a 900 lb. maximum arrest force (MAF) device must be used as part of a complete fall arrest system; maximum weight of the person on the anchorage is 310 lbs. (141 kg) inclusive of all tools and equipment

AC-28RX Materials & Construction:

• General construction: Welded carbon steel, electroless nickel plating
• Hardware: Grade 5 zinc-plated steel

AC-28RX Weight: 55 lbs. (25.0 kg)

AC-28RX Features:

• Portable Fall Arrest Tower base for installation on manways
• Telescoping tube sections and adjustable plates allow maximum adjustment
• Provides an approved mounting base for the FT-C70

An optional Carrying Case is available at checkout.
