Pelsue Uni-Lite Portable Fall Arrest Post + FB-SW1 Weld-On Base Plate

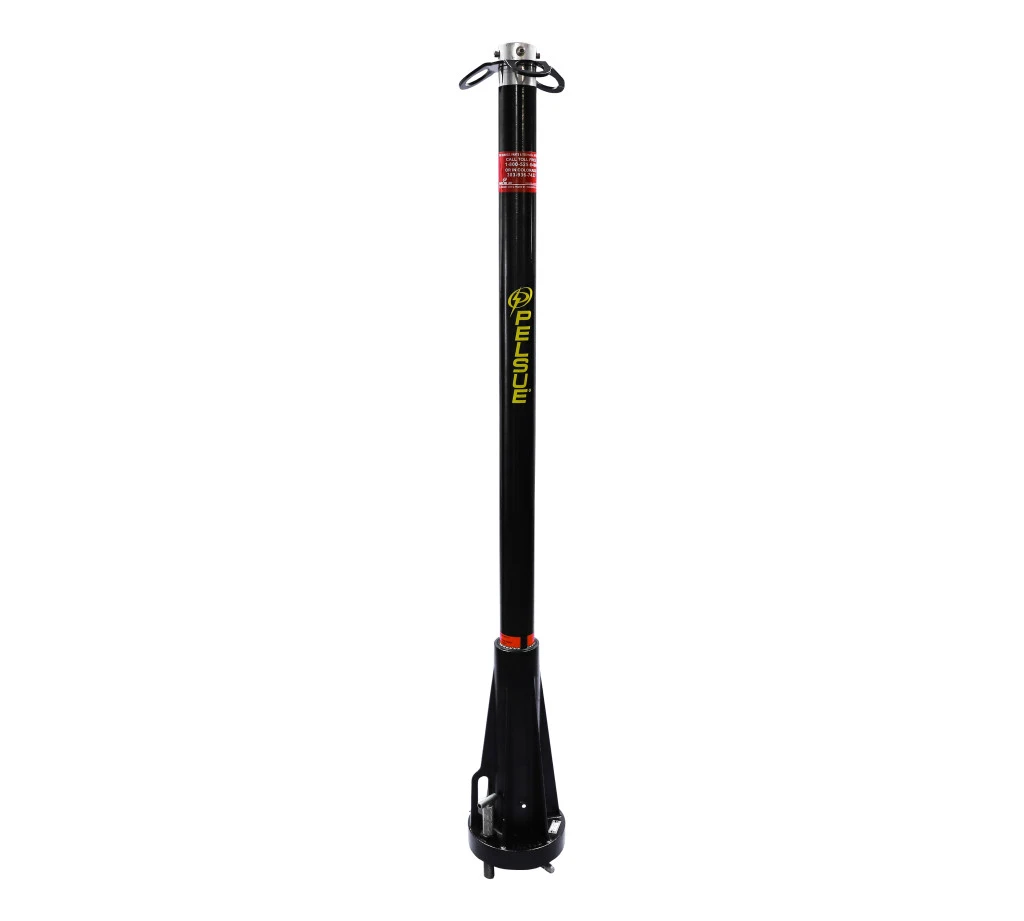

The Pelsue Uni-Lite Fall Arrest Post (FT-C70) is built from carbon fiber rather than heavy steel or aluminum, so it's easy to lift and position on site. Like a fishing pole, it flexes under load to absorb the force of a fall, and its 360 degree swivel tie-off gives up to three workers independent anchor points at 5.8' high. The post stands 9"D x 6'H and weighs 39 lbs on its own.

This is a pair of the FT-C70 post with the FB-SW1 Weld-On Base Plate, featuring mounting ears for a permanent, welded installation.

FB-SW1 General Specifications:

• Intended to be permanently attached to structural steel members and used for the removable mounting of Pelsue fall arrest towers
• Plate is to be welded to the surface, adhering to all Pelsue guidelines

FB-SW1 Materials & Construction:

• General construction: Welded carbon steel
• Weld certification: AWS - D1.1
• Material: ASTM A36 steel

FB-SW1 Dimensions: Length 9.0" × Width 8.0" × Height 2.9" Weight: 12 lbs. (5.5 kg)

FB-SW1 Strength & Testing Data:

• Torsional proof load: 20,274 ft.-lb. (27,488 N-m) at pin hole center
• Equivalent load and angle: 5,400 lb. (2,449 kg) tensile force applied at a point 55 inches (1.4 m) above pinhole center at 55° off vertical
• Rating: 3-person fall arrest anchorage when used with an approved arrest tower and 900 lb. MAF devices on all connections

An optional Carrying Case is available.
