Pelsue Uni-Lite Portable Fall Arrest Post + Pelsue Uni-Lite Expandable Base Accessory + BC-16S Beam Clamp (8-3/4"-16" I-Beam)

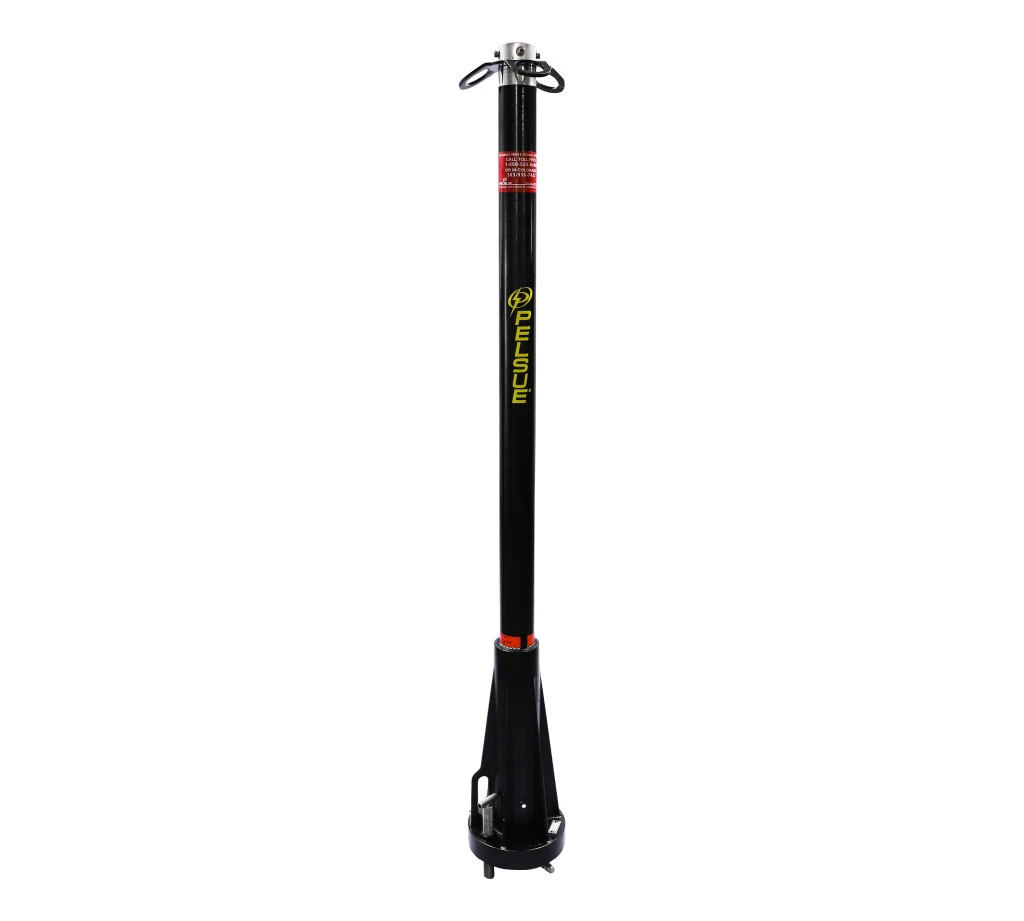

This listing bundles the full assembly for raising a Pelsue Uni-Lite Fall Arrest Post's anchor point: the FT-C70 post (9"D x 6'H, 39 lbs, carbon fiber, flexes to absorb fall force), the TFAT-14C Expandable Base Accessory, and a base plate.

Here it's paired with the BC-16S Structural Beam Clamp, designed to provide a portable mounting point for the FT-C70. Telescoping tube sections extend via a speed handle, allowing two angled jaw plates to grip underneath the flange of the structure. It anchors to structures with an outside flange width between 8-3/4" and 16" and a flange thickness of up to 1". Constructed of steel with a durable electroless nickel-plated finish, it's also equipped with a swivel D-ring for use as a stand-alone anchorage point when not paired with the tower.

BC-16S General Specifications:

• As a portable fall arrest anchorage point: man-rated load capacity at the anchor D-ring is 310 lbs. (141 kg) maximum, single user
• As a portable mounting base for the FT-C70 (when both products are used per their respective manuals): rating is determined by the fall arrest tower
• Warning: a 900 lb. maximum arrest force (MAF) device must be used as part of a complete fall arrest system; maximum weight of the person on the anchorage is 310 lbs. (141 kg) inclusive of all tools and equipment

BC-16S Materials & Construction:

• General construction: Welded carbon steel, electroless nickel plating
• Hardware: Grade 5 zinc-plated steel

BC-16S Weight: 40 lbs. (18.1 kg)

An optional Carrying Case is available at checkout.
