Pelsue - Four Arm Manway Mount: SB-SM1

About:

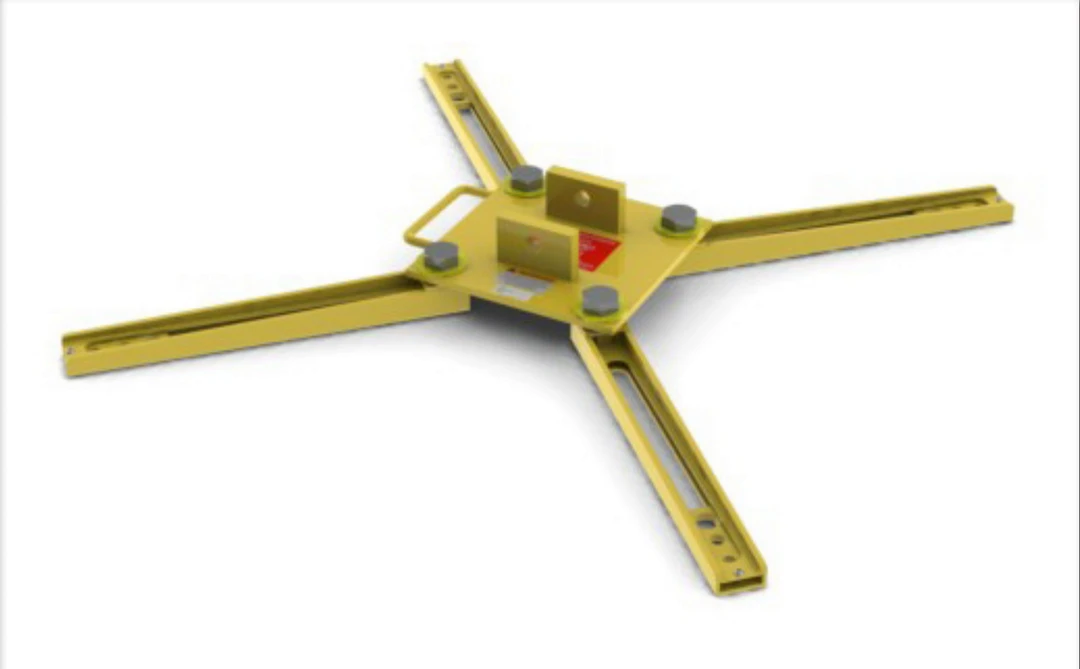

The Pelsue Model #SB-SM1 4-Arm Manway Base is specifically designed to provide a portable mounting point for a Pelsue Model #FT-C70 Fall Arrest Tower. The four arms that extend from the base plate of the Model #SB-SM1 pivot independently, and are equipped with sliding bolting blocks that can be secured at any point along the leg’s length. These two features allow the Model #SB-SM1 to mount over a large variety of sizes of manways up to a 40” maximum diameter. The Model #SB-SM1 is constructed of steel with a powdercoated finish. The Model #SB-SM1 is only rated for usage in conjunction with a Pelsue Model #FT-C70 Fall Arrest Tower and must be operated according to the supplied Product Manual.

General Specifications:
The #SB-SM1 is approved as a portable mounting base for a Pelsue Model #FT-C70 Fall Arrest Tower when both products are employed and utilized according to their respective Product Manuals.
! NOTE ! - Installation of the Model #FT-C70 Fall Arrest Tower on a Model #SB-SM1 Manway Base will reduce the allowed number of users from 3 to 2. Always remember that a complete fall arrest system must be employed and rated according to the capabilities of all of the components used within that system.

Materials & Construction:
General Construction: Welded Carbon Steel, Powdercoated
Hardware: Grade 8 Steel Zinc Plated Steel

Weight:
42.4 lbs. (19.2 kg)

Features:
Portable Fall Arrest Tower Base for installation on manways
Independently pivoting arms and Slider Blocks allow maximum adjustment
Folding Arms and handle for easy transportation or stowage
Provides an approved mounting base for an #FT-C70 fall arrest tower
