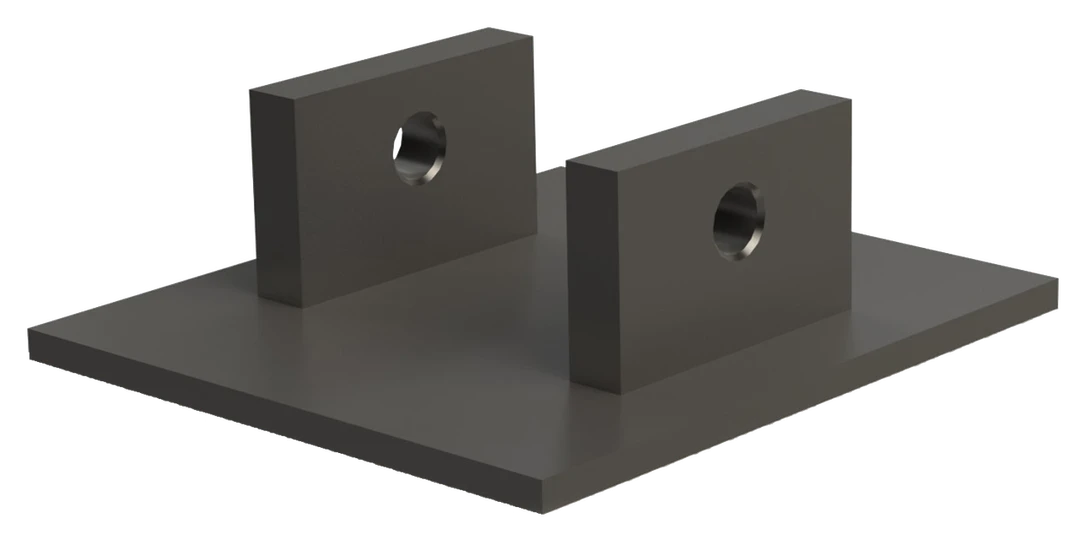

Pelsue - Weld on Plate (For Fall Arrest Tower): FB-SW1

• With mounting ears
• 8 in.
• Made from high-quality materials

General Specifications:
1. The #FB-SW1 Weld-On Base Plate is intended to be permanently attached upon structural steel members and used for the removable mounting of PELSUE brand fall arrest towers.
2. Plate is to be welded on to surface adhering to all PELSUE guidelines.

Materials & Construction:
General construction: Welded carbon steel
Weld certification: AWS - D1.1
Material: ASTM A36 STEEL

Dimensions:
Length - 9.0”
Width - 8.0”
Height - 2.9”
Weight: 12 LBS. (5.5 KG.)

Torsional Proof Load: 20,274 FT.-LB. (27,488 N-M) at pin hole center
Equivalent load and angle: 5400 LB. (2449 KG.) Tensile force applied at a point of 55 inches (1.4 M) above pinhole center at an angle of 55 degrees off of vertical.
Rating: 3 person fall arrest anchorage when used in conjunction with an approved arrest tower and 900 lb. MAF devices on all connections
